sc_core::sc_bind_proxy Struct Reference

Struct for temporarily storing a pointer to an interface or port. More...

#include <sysc/kernel/sc_module.h>

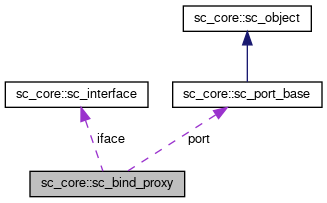

Collaboration diagram for sc_core::sc_bind_proxy:

Public Member Functions
	sc_bind_proxy ()
	sc_bind_proxy (sc_interface &)
	sc_bind_proxy (sc_port_base &)

Public Attributes
sc_interface *	iface
sc_port_base *	port

Detailed Description

Struct for temporarily storing a pointer to an interface or port.

Used for positional binding.

Definition at line 63 of file sc_module.h.

Constructor & Destructor Documentation

sc_bind_proxy() [1/3]

sc_core::sc_bind_proxy::sc_bind_proxy

(

)

sc_bind_proxy() [2/3]

sc_core::sc_bind_proxy::sc_bind_proxy

(

sc_interface &

)

sc_bind_proxy() [3/3]

sc_core::sc_bind_proxy::sc_bind_proxy

(

sc_port_base &

)

Member Data Documentation

iface

sc_interface* sc_core::sc_bind_proxy::iface

Definition at line 65 of file sc_module.h.

port

sc_port_base* sc_core::sc_bind_proxy::port

Definition at line 66 of file sc_module.h.

---

The documentation for this struct was generated from the following file:

• sysc/kernel/sc_module.h
