tlm::tlm_fw_transport_if< TYPES > Class Template Reference

#include <tlm_core/tlm_2/tlm_2_interfaces/tlm_fw_bw_ifs.h>

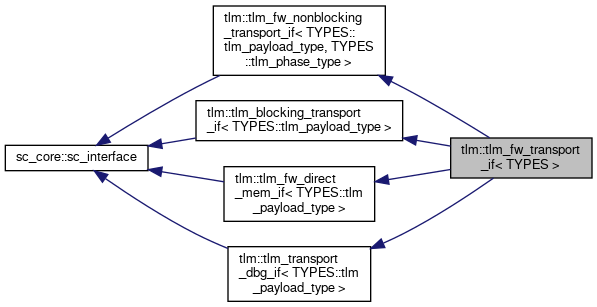

Inheritance diagram for tlm::tlm_fw_transport_if< TYPES >:

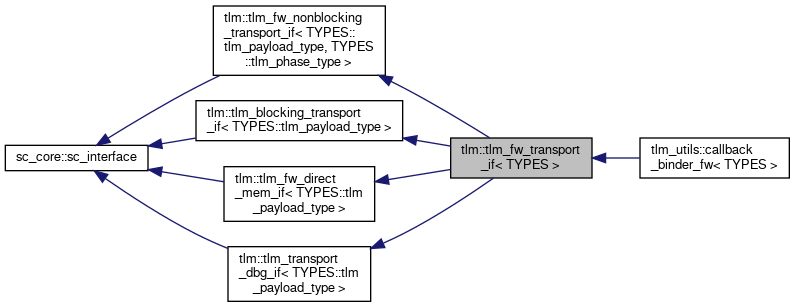

Collaboration diagram for tlm::tlm_fw_transport_if< TYPES >:

Public Member Functions
virtual tlm_sync_enum	nb_transport_fw (TYPES::tlm_payload_type &trans, TYPES::tlm_phase_type &phase, sc_core::sc_time &t)=0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual void	b_transport (TYPES::tlm_payload_type &trans, sc_core::sc_time &t)=0
virtual bool	get_direct_mem_ptr (TYPES::tlm_payload_type &trans, tlm_dmi &dmi_data)=0
virtual unsigned int	transport_dbg (TYPES::tlm_payload_type &trans)=0

Detailed Description

template<typename TYPES = tlm_base_protocol_types>
class tlm::tlm_fw_transport_if< TYPES >

Definition at line 205 of file tlm_fw_bw_ifs.h.

Member Function Documentation

b_transport()

virtual void tlm::tlm_blocking_transport_if< TYPES::tlm_payload_type >::b_transport ( TYPES::tlm_payload_type &  trans, sc_core::sc_time &  t  )

pure virtualinherited

Implemented in tlm_utils::callback_binder_fw< TYPES >.

get_direct_mem_ptr()

virtual bool tlm::tlm_fw_direct_mem_if< TYPES::tlm_payload_type >::get_direct_mem_ptr ( TYPES::tlm_payload_type &  trans, tlm_dmi &  dmi_data  )

pure virtualinherited

Implemented in tlm_utils::callback_binder_fw< TYPES >.

nb_transport_fw()

virtual tlm_sync_enum tlm::tlm_fw_nonblocking_transport_if< TYPES::tlm_payload_type , TYPES::tlm_phase_type >::nb_transport_fw ( TYPES::tlm_payload_type &  trans, TYPES::tlm_phase_type &  phase, sc_core::sc_time &  t  )

pure virtualinherited

Implemented in tlm_utils::callback_binder_fw< TYPES >.

transport_dbg()

virtual unsigned int tlm::tlm_transport_dbg_if< TYPES::tlm_payload_type >::transport_dbg ( TYPES::tlm_payload_type &  trans )

pure virtualinherited

Implemented in tlm_utils::callback_binder_fw< TYPES >.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_2/tlm_2_interfaces/tlm_fw_bw_ifs.h
