tlm::tlm_bw_transport_if< TYPES > Class Template Reference

#include <tlm_core/tlm_2/tlm_2_interfaces/tlm_fw_bw_ifs.h>

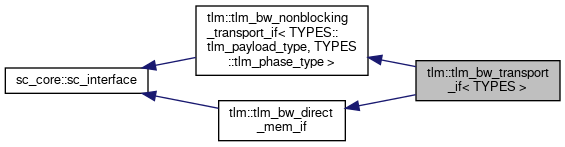

Inheritance diagram for tlm::tlm_bw_transport_if< TYPES >:

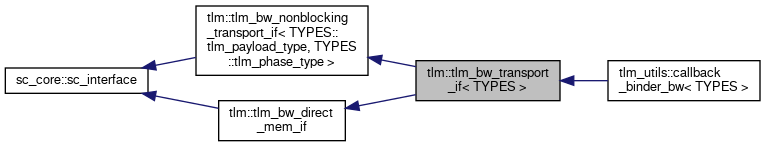

Collaboration diagram for tlm::tlm_bw_transport_if< TYPES >:

Public Member Functions
virtual tlm_sync_enum	nb_transport_bw (TYPES::tlm_payload_type &trans, TYPES::tlm_phase_type &phase, sc_core::sc_time &t)=0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual void	invalidate_direct_mem_ptr (sc_dt::uint64 start_range, sc_dt::uint64 end_range)=0

Detailed Description

template<typename TYPES = tlm_base_protocol_types>
class tlm::tlm_bw_transport_if< TYPES >

Definition at line 215 of file tlm_fw_bw_ifs.h.

Member Function Documentation

invalidate_direct_mem_ptr()

virtual void tlm::tlm_bw_direct_mem_if::invalidate_direct_mem_ptr ( sc_dt::uint64  start_range, sc_dt::uint64  end_range  )

pure virtualinherited

Implemented in tlm_utils::callback_binder_bw< TYPES >.

nb_transport_bw()

virtual tlm_sync_enum tlm::tlm_bw_nonblocking_transport_if< TYPES::tlm_payload_type , TYPES::tlm_phase_type >::nb_transport_bw ( TYPES::tlm_payload_type &  trans, TYPES::tlm_phase_type &  phase, sc_core::sc_time &  t  )

pure virtualinherited

Implemented in tlm_utils::callback_binder_bw< TYPES >.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_2/tlm_2_interfaces/tlm_fw_bw_ifs.h
