sc_signal_ports.h File Reference

The sc_signal<T> port classes. More...

#include "sysc/communication/sc_event_finder.h"
#include "sysc/communication/sc_port.h"
#include "sysc/communication/sc_signal_ifs.h"
#include "sysc/datatypes/bit/sc_logic.h"
#include "sysc/tracing/sc_trace.h"

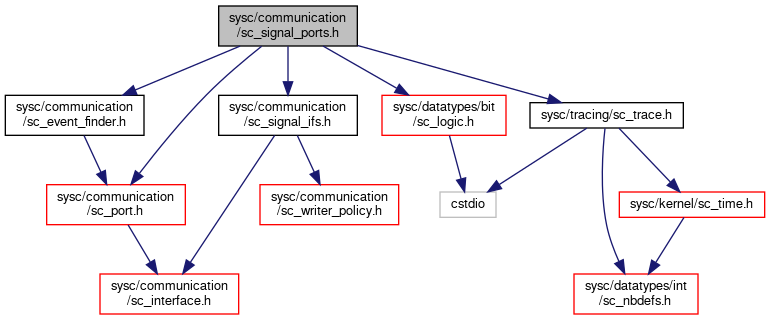

Include dependency graph for sc_signal_ports.h:

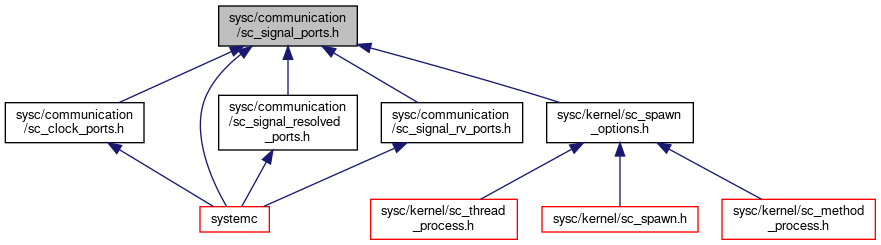

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sc_core::sc_trace_params
	Struct for storing the trace file and object name of an sc_trace call. More...
class	sc_core::sc_in< T >
class	sc_core::sc_in< bool >
	Specialization of sc_in<T> for type bool. More...
class	sc_core::sc_in< sc_dt::sc_logic >
	Specialization of sc_in<T> for type sc_dt::sc_logic. More...
class	sc_core::sc_inout< T >
class	sc_core::sc_inout< bool >
	Specialization of sc_inout<T> for type bool. More...
class	sc_core::sc_inout< sc_dt::sc_logic >
	Specialization of sc_inout<T> for type sc_dt::sc_logic. More...
class	sc_core::sc_out< T >

Namespaces
	sc_core

Macros
#define	SC_VIRTUAL_   virtual

Typedefs
typedef std::vector< sc_trace_params * >	sc_core::sc_trace_params_vec

Functions
SC_API void	sc_core::sc_deprecated_add_trace ()
template<typename T >
::std::ostream &	sc_core::operator<< (::std::ostream &os, const sc_in< T > &a)
template<typename T >
::std::ostream &	sc_core::operator<< (::std::ostream &os, const sc_inout< T > &a)
template<class T >
void	sc_core::sc_trace (sc_trace_file *tf, const sc_in< T > &port, const std::string &name)
template<class T >
void	sc_core::sc_trace (sc_trace_file *tf, const sc_inout< T > &port, const std::string &name)

Variables
SC_API_TEMPLATE_DECL_	sc_core::sc_port< sc_signal_in_if< bool >, 1, SC_ONE_OR_MORE_BOUND >
SC_API_TEMPLATE_DECL_	sc_core::sc_port< sc_signal_inout_if< bool >, 1, SC_ONE_OR_MORE_BOUND >

Detailed Description

The sc_signal<T> port classes.

Original Author: Martin Janssen, Synopsys, Inc., 2001-05-21

CHANGE LOG APPEARS AT THE END OF THE FILE

Definition in file sc_signal_ports.h.

Macro Definition Documentation

SC_VIRTUAL_

#define SC_VIRTUAL_   virtual

Definition at line 44 of file sc_signal_ports.h.
