sc_bit.h File Reference

Bit class. More...

#include "sysc/datatypes/int/sc_nbdefs.h"
#include <iostream>

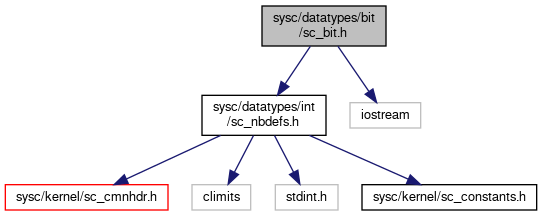

Include dependency graph for sc_bit.h:

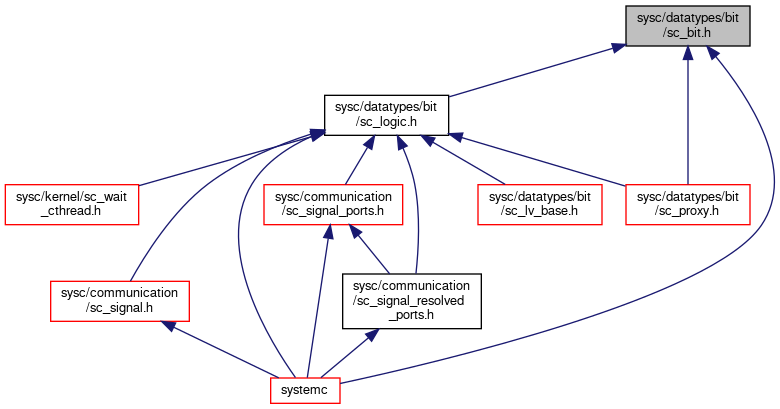

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_dt::sc_bit
	Bit class. More...

Namespaces
	sc_dt

Macros
#define	DEFN_TO_VALUE_T(tp)
#define	DEFN_CTOR_T(tp)
#define	DEFN_ASN_OP_T(op, tp)
#define	DEFN_ASN_OP(op)
#define	DEFN_BIN_FUN_T(ret, fun, tp)
#define	DEFN_BIN_FUN(ret, fun)
#define	DEFN_TRN_FUN_T(fun, tp)
#define	DEFN_TRN_FUN(fun)

Functions
void	sc_dt::sc_deprecated_sc_bit ()
bool	sc_dt::operator== (const sc_bit &a, const sc_bit &b)
bool	sc_dt::operator!= (const sc_bit &a, const sc_bit &b)
bool	sc_dt::equal (const sc_bit &a, const sc_bit &b)
bool	sc_dt::not_equal (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::operator~ (const sc_bit &a)
const sc_bit	sc_dt::b_not (const sc_bit &a)
void	sc_dt::b_not (sc_bit &r, const sc_bit &a)
const sc_bit	sc_dt::operator& (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::operator| (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::operator^ (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::b_and (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::b_or (const sc_bit &a, const sc_bit &b)
const sc_bit	sc_dt::b_xor (const sc_bit &a, const sc_bit &b)
inline ::std::ostream &	sc_dt::operator<< (::std::ostream &os, const sc_bit &a)
inline ::std::istream &	sc_dt::operator>> (::std::istream &is, sc_bit &a)

Detailed Description

Bit class.

Original Author: Stan Y. Liao, Synopsys, Inc.

Definition in file sc_bit.h.

Macro Definition Documentation

DEFN_ASN_OP

#define DEFN_ASN_OP

(

op

)

Value:

DEFN_ASN_OP_T(op,int) \
    DEFN_ASN_OP_T(op,bool) \
    DEFN_ASN_OP_T(op,char)

Definition at line 183 of file sc_bit.h.

DEFN_ASN_OP_T

#define DEFN_ASN_OP_T	(		op,
			tp
	)

Value:

sc_bit& operator op( tp b ) \
       { return ( *this op sc_bit( b ) ); }

Definition at line 180 of file sc_bit.h.

DEFN_BIN_FUN

#define DEFN_BIN_FUN	(		ret,
			fun
	)

Value:

DEFN_BIN_FUN_T(ret,fun,bool) \
      DEFN_BIN_FUN_T(ret,fun,char) \
      DEFN_BIN_FUN_T(ret,fun,int)

Definition at line 282 of file sc_bit.h.

DEFN_BIN_FUN_T

#define DEFN_BIN_FUN_T	(		ret,
			fun,
			tp
	)

Value:

inline ret fun( const sc_bit& a, tp b ) \
       { return fun(a, sc_bit(b) ); }      \
    inline ret fun( tp b, const sc_bit& a ) \
       { return fun( sc_bit(a), b ); }

relational operators and functions

Definition at line 276 of file sc_bit.h.

DEFN_CTOR_T

#define DEFN_CTOR_T

(

tp

)

Value:

explicit sc_bit( tp a )          \
       : m_val( to_value(a) )       \
       { sc_deprecated_sc_bit(); }

Definition at line 140 of file sc_bit.h.

DEFN_TO_VALUE_T

#define DEFN_TO_VALUE_T

(

tp

)

Value:

static bool to_value( tp i )         \
       { return to_value( (int) i); }

Definition at line 117 of file sc_bit.h.

DEFN_TRN_FUN

#define DEFN_TRN_FUN

(

fun

)

Value:

inline void fun( sc_bit& r, const sc_bit& a, const sc_bit& b ) \
        { r = fun( a , b ); }                                      \
    DEFN_TRN_FUN_T(fun,int)                                        \
    DEFN_TRN_FUN_T(fun,bool)                                       \
    DEFN_TRN_FUN_T(fun,char)

Definition at line 371 of file sc_bit.h.

DEFN_TRN_FUN_T

#define DEFN_TRN_FUN_T	(		fun,
			tp
	)

Value:

inline void fun( sc_bit& r, const sc_bit& a, tp b )            \
        { r = fun( a, sc_bit(b) ); }                               \
    inline void fun( sc_bit& r, tp a, const sc_bit& b )            \
        { r = fun( sc_bit(a), b ); }

Definition at line 365 of file sc_bit.h.
