sc_process.h File Reference

Process base class support. More...

#include "sysc/kernel/sc_constants.h"
#include "sysc/kernel/sc_object.h"
#include "sysc/kernel/sc_kernel_ids.h"
#include "sysc/communication/sc_export.h"

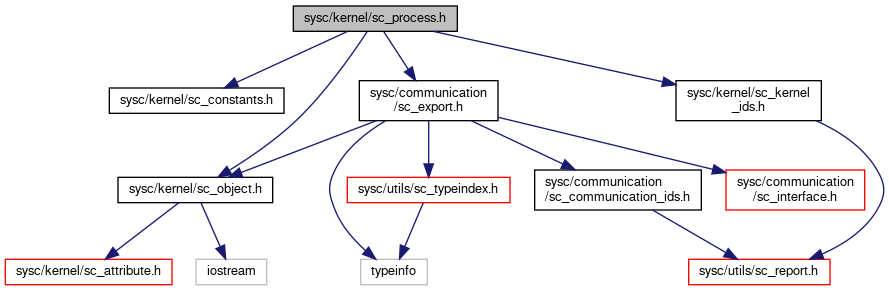

Include dependency graph for sc_process.h:

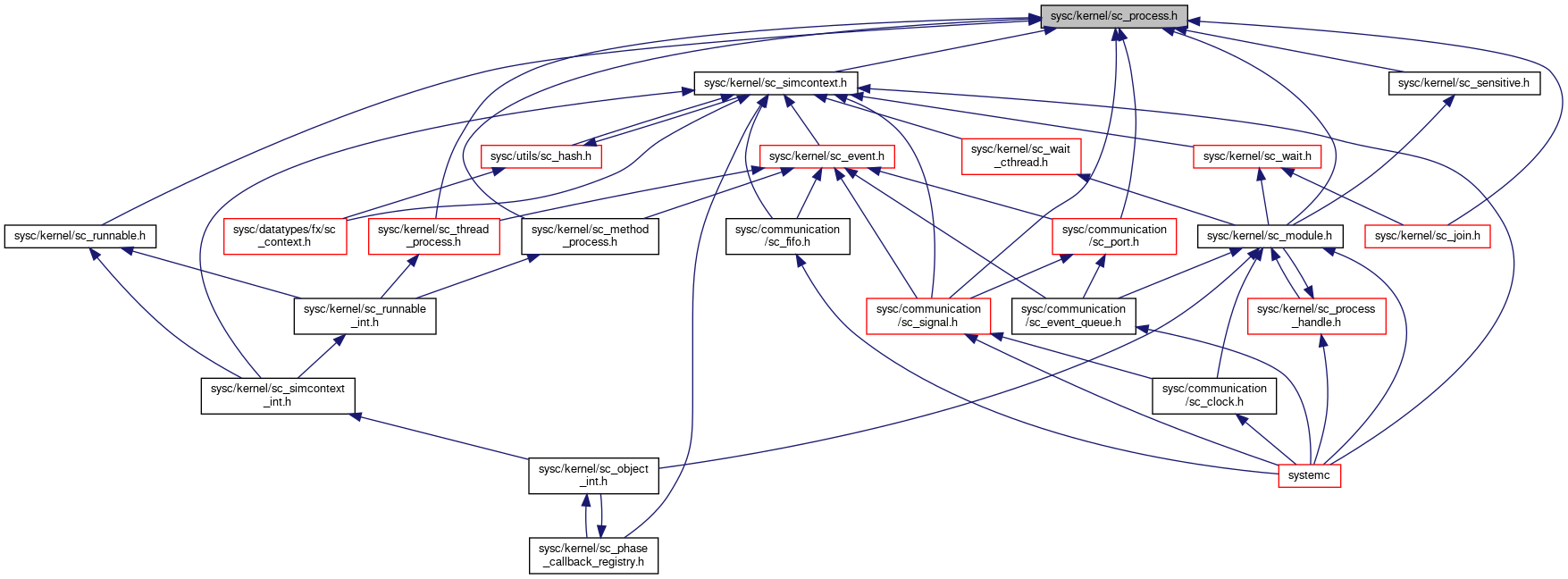

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_core::sc_process_host
class	sc_core::sc_process_monitor
class	sc_core::sc_throw_it_helper
class	sc_core::sc_throw_it< EXCEPT >
class	sc_core::sc_process_b
struct	sc_core::scoped_flag

Namespaces
	sc_core

Macros
#define	SC_USE_MEMBER_FUNC_PTR
#define	SC_DECL_HELPER_STRUCT(callback_tag, func)   /*EMPTY*/
#define	SC_MAKE_FUNC_PTR(callback_tag, func)   static_cast<sc_core::SC_ENTRY_FUNC>(&callback_tag::func)

Typedefs
typedef class sc_cthread_process *	sc_core::sc_cthread_handle
typedef class sc_method_process *	sc_core::sc_method_handle
typedef class sc_thread_process *	sc_core::sc_thread_handle
typedef void(sc_process_host::*	sc_core::SC_ENTRY_FUNC) ()
typedef sc_process_b	sc_core::sc_process_b

Enumerations
enum	sc_core::sc_curr_proc_kind { sc_core::SC_NO_PROC_, sc_core::SC_METHOD_PROC_, sc_core::SC_THREAD_PROC_, sc_core::SC_CTHREAD_PROC_ }
enum	sc_core::sc_descendant_inclusion_info { sc_core::SC_NO_DESCENDANTS =0, sc_core::SC_INCLUDE_DESCENDANTS, sc_core::SC_INVALID_DESCENDANTS }

Functions
SC_API const char *	sc_core::sc_gen_unique_name (const char *, bool preserve_first)
SC_API sc_process_handle	sc_core::sc_get_current_process_handle ()
void	sc_core::sc_thread_cor_fn (void *arg)
SC_API bool	sc_core::timed_out (sc_simcontext *)
SC_API void	sc_core::sc_set_stack_size (sc_thread_handle, std::size_t)

Variables
SC_API bool	sc_core::sc_allow_process_control_corners

Detailed Description

Process base class support.

Original Author: Andy Goodrich, Forte Design Systems, 04 August 2005

CHANGE LOG AT THE END OF THE FILE

Definition in file sc_process.h.

Macro Definition Documentation

SC_DECL_HELPER_STRUCT

#define SC_DECL_HELPER_STRUCT	(		callback_tag,
			func
	)		/*EMPTY*/

Definition at line 153 of file sc_process.h.

SC_MAKE_FUNC_PTR

#define SC_MAKE_FUNC_PTR	(		callback_tag,
			func
	)		static_cast<sc_core::SC_ENTRY_FUNC>(&callback_tag::func)

Definition at line 154 of file sc_process.h.

SC_USE_MEMBER_FUNC_PTR

#define SC_USE_MEMBER_FUNC_PTR

Definition at line 144 of file sc_process.h.
