sc_simcontext.h File Reference

Definition of the simulation context class. More...

#include "sysc/kernel/sc_cmnhdr.h"
#include "sysc/kernel/sc_process.h"
#include "sysc/kernel/sc_status.h"
#include "sysc/kernel/sc_time.h"
#include "sysc/utils/sc_hash.h"
#include "sysc/utils/sc_pq.h"

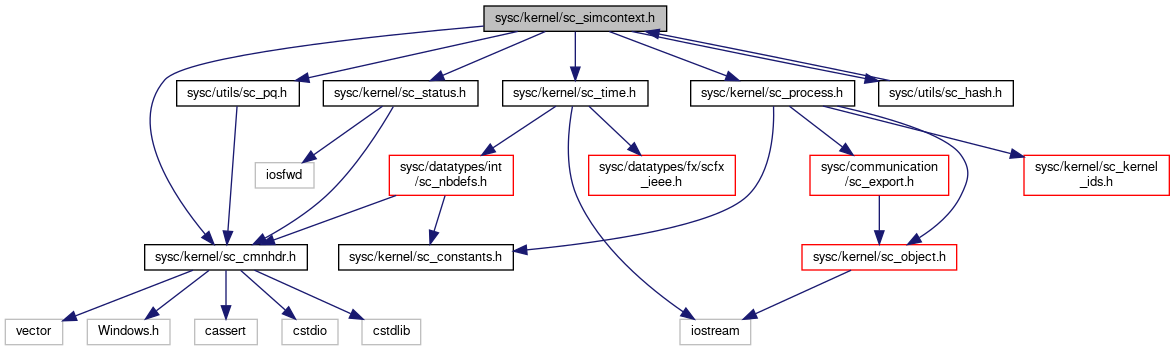

Include dependency graph for sc_simcontext.h:

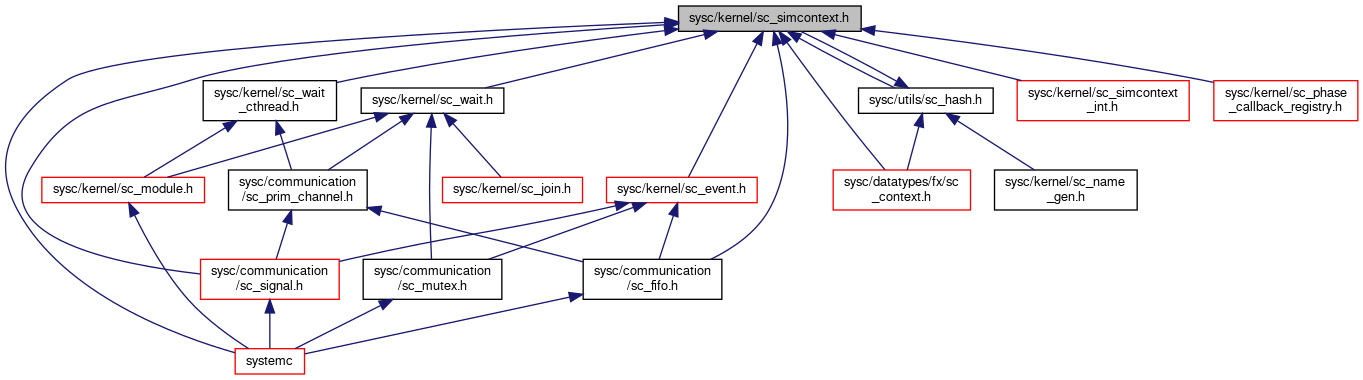

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_core::sc_plist< T >
struct	sc_core::sc_curr_proc_info
class	sc_core::sc_simcontext
	The simulation context. More...

Namespaces
	sc_core

Typedefs
typedef sc_plist< sc_process_b *>	sc_core::sc_process_list
typedef const sc_curr_proc_info *	sc_core::sc_curr_proc_handle

Enumerations
enum	sc_core::sc_stop_mode { sc_core::SC_STOP_FINISH_DELTA, sc_core::SC_STOP_IMMEDIATE }
enum	sc_core::sc_starvation_policy { sc_core::SC_EXIT_ON_STARVATION, sc_core::SC_RUN_TO_TIME }

Functions
SC_API void	sc_core::sc_set_stop_mode (sc_stop_mode mode)
SC_API sc_stop_mode	sc_core::sc_get_stop_mode ()
SC_API void	sc_core::sc_start ()
SC_API void	sc_core::sc_start (const sc_time &duration, sc_starvation_policy p=SC_RUN_TO_TIME)
void	sc_core::sc_start (int duration, sc_time_unit unit, sc_starvation_policy p=SC_RUN_TO_TIME)
void	sc_core::sc_start (double duration, sc_time_unit unit, sc_starvation_policy p=SC_RUN_TO_TIME)
SC_API void	sc_core::sc_stop ()
SC_API sc_dt::uint64	sc_core::sc_delta_count ()
SC_API sc_dt::uint64	sc_core::sc_delta_count_at_current_time ()
SC_API const std::vector< sc_event * > &	sc_core::sc_get_top_level_events (const sc_simcontext *simc_p)
SC_API const std::vector< sc_object * > &	sc_core::sc_get_top_level_objects (const sc_simcontext *simc_p)
SC_API bool	sc_core::sc_is_running (const sc_simcontext *simc_p)
SC_API void	sc_core::sc_pause ()
SC_API bool	sc_core::sc_end_of_simulation_invoked ()
SC_API bool	sc_core::sc_start_of_simulation_invoked ()
SC_API void	sc_core::sc_set_time_resolution (double, sc_time_unit)
SC_API sc_time	sc_core::sc_get_time_resolution ()
SC_API void	sc_core::sc_set_default_time_unit (double, sc_time_unit)
SC_API sc_time	sc_core::sc_get_default_time_unit ()
SC_API bool	sc_core::sc_pending_activity_at_current_time (const sc_simcontext *)
SC_API bool	sc_core::sc_pending_activity_at_future_time (const sc_simcontext *)
SC_API sc_time	sc_core::sc_time_to_pending_activity (const sc_simcontext *)
sc_simcontext *	sc_core::sc_get_curr_simcontext ()
sc_status	sc_core::sc_get_status ()
SC_API sc_process_handle	sc_core::sc_get_current_process_handle ()
sc_object *	sc_core::sc_get_current_object ()
sc_process_b *	sc_core::sc_get_current_process_b ()
SC_API sc_process_b *	sc_core::sc_get_curr_process_handle ()
sc_curr_proc_kind	sc_core::sc_get_curr_process_kind ()
int	sc_core::sc_get_simulator_status ()
SC_API const char *	sc_core::sc_gen_unique_name (const char *, bool preserve_first)
SC_API void	sc_core::sc_set_random_seed (unsigned int seed_)
SC_API void	sc_core::sc_initialize ()
SC_API const sc_time &	sc_core::sc_max_time ()
SC_API const sc_time &	sc_core::sc_time_stamp ()
SC_API double	sc_core::sc_simulation_time ()
SC_API sc_event *	sc_core::sc_find_event (const char *name)
SC_API sc_object *	sc_core::sc_find_object (const char *name)
SC_API bool	sc_core::sc_is_unwinding ()
bool	sc_core::sc_pending_activity (const sc_simcontext *simc_p=sc_get_curr_simcontext())
bool	sc_core::sc_hierarchical_name_exists (const char *name)
bool	sc_core::sc_hierarchical_name_exists (const sc_object *parent, const char *name)
const char *	sc_core::sc_get_hierarchical_name (const char *name)
const char *	sc_core::sc_get_hierarchical_name (const sc_object *parent, const char *name)
bool	sc_core::sc_register_hierarchical_name (const char *name)
bool	sc_core::sc_register_hierarchical_name (const sc_object *parent, const char *name)
bool	sc_core::sc_unregister_hierarchical_name (const char *name)
bool	sc_core::sc_unregister_hierarchical_name (const sc_object *parent, const char *name)

Variables
SC_API sc_simcontext *	sc_core::sc_curr_simcontext
SC_API sc_simcontext *	sc_core::sc_default_global_context

Detailed Description

Definition of the simulation context class.

Original Author: Stan Y. Liao, Synopsys, Inc. Martin Janssen, Synopsys, Inc.

CHANGE LOG AT THE END OF THE FILE

Definition in file sc_simcontext.h.
