sc_report.h File Reference

Run-time logging and reporting facilities. More...

#include <exception>
#include <string>
#include "sysc/kernel/sc_cmnhdr.h"
#include "sysc/utils/sc_report_handler.h"

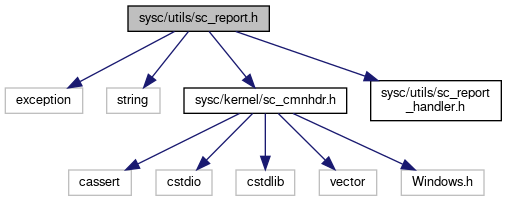

Include dependency graph for sc_report.h:

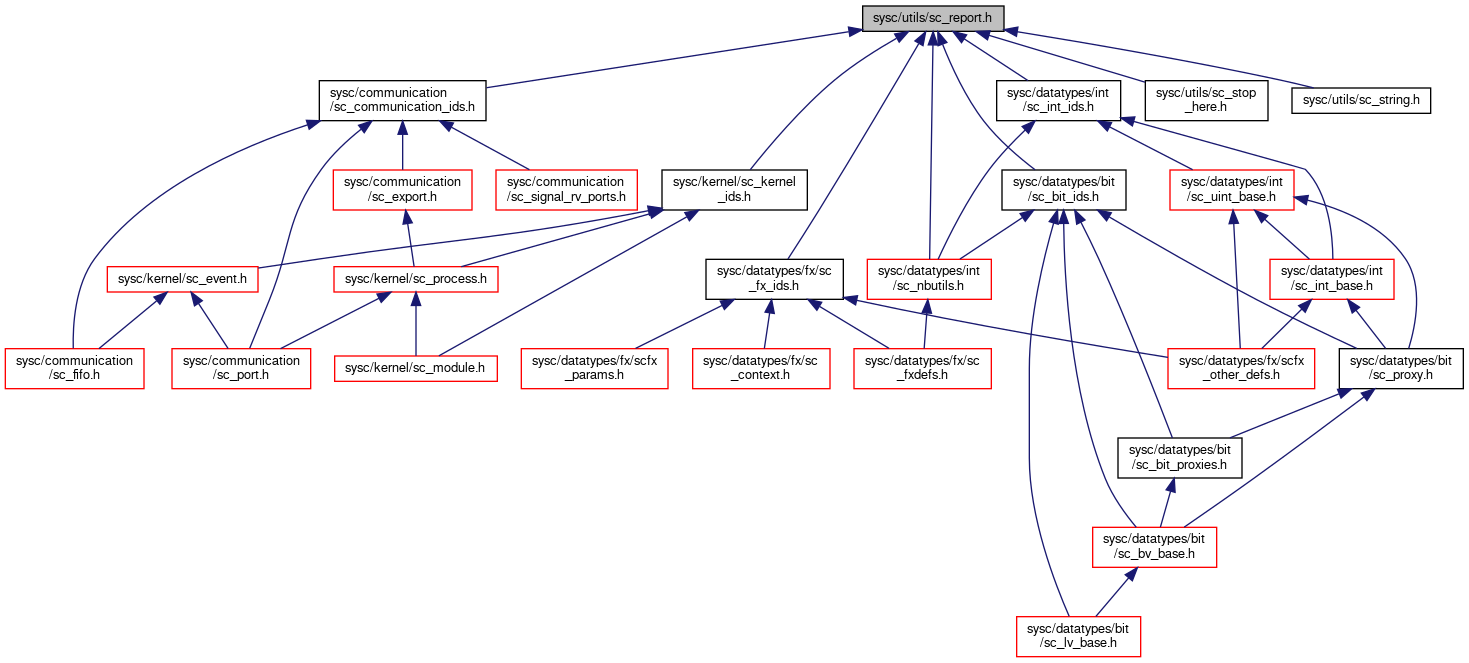

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_core::sc_report
	Exception reporting. More...

Namespaces
	sc_core

Macros
#define	SC_REPORT_INFO(msg_type, msg)
#define	SC_REPORT_INFO_VERB(msg_type, msg, verbosity)
#define	SC_REPORT_WARNING(msg_type, msg)
#define	SC_REPORT_ERROR(msg_type, msg)
#define	SC_REPORT_FATAL(msg_type, msg)
#define	SC_NORETURN_   /* nothing */
#define	sc_assert(expr)

Typedefs
typedef unsigned	sc_core::sc_actions
typedef std::exception	sc_core::sc_exception

Enumerations
enum	sc_core::sc_severity {   sc_core::SC_INFO = 0, sc_core::SC_WARNING, sc_core::SC_ERROR, sc_core::SC_FATAL,   sc_core::SC_MAX_SEVERITY }
	Enumeration of possible exception severity levels. More...
enum	sc_core::sc_verbosity {   sc_core::SC_NONE = 0, sc_core::SC_LOW = 100, sc_core::SC_MEDIUM = 200, sc_core::SC_HIGH = 300,   sc_core::SC_FULL = 400, sc_core::SC_DEBUG = 500 }
enum	{   sc_core::SC_UNSPECIFIED = 0x0000, sc_core::SC_DO_NOTHING = 0x0001, sc_core::SC_THROW = 0x0002, sc_core::SC_LOG = 0x0004,   sc_core::SC_DISPLAY = 0x0008, sc_core::SC_CACHE_REPORT = 0x0010, sc_core::SC_INTERRUPT = 0x0020, sc_core::SC_STOP = 0x0040,   sc_core::SC_ABORT = 0x0080, sc_core::SC_DEFAULT_INFO_ACTIONS = SC_LOG | SC_DISPLAY, sc_core::SC_DEFAULT_WARNING_ACTIONS = SC_LOG | SC_DISPLAY, sc_core::SC_DEFAULT_ERROR_ACTIONS = SC_LOG | SC_CACHE_REPORT | SC_THROW,   sc_core::SC_DEFAULT_FATAL_ACTIONS = SC_LOG | SC_DISPLAY | SC_CACHE_REPORT | SC_ABORT, sc_core::SC_DEFAULT_CATCH_ACTIONS = SC_DISPLAY }

Functions
SC_API const std::string	sc_core::sc_report_compose_message (const sc_report &)
SC_NORETURN_ SC_API void	sc_core::sc_abort ()
SC_NORETURN_ SC_API void	sc_core::sc_assertion_failed (const char *msg, const char *file, int line)

Variables
SC_API const char	sc_core::SC_ID_UNKNOWN_ERROR_ []
SC_API const char	sc_core::SC_ID_WITHOUT_MESSAGE_ []
SC_API const char	sc_core::SC_ID_NOT_IMPLEMENTED_ []
SC_API const char	sc_core::SC_ID_INTERNAL_ERROR_ []
SC_API const char	sc_core::SC_ID_ASSERTION_FAILED_ []
SC_API const char	sc_core::SC_ID_OUT_OF_BOUNDS_ []
SC_API const char	sc_core::SC_ID_ABORT_ []

Detailed Description

Run-time logging and reporting facilities.

Interface design by SystemC Verification Working Group. Implementation by Alex Riesen, Synopsys Inc. Original implementation by Martin Janssen, Synopsys Inc. Reference implementation by Cadence Design Systems, Inc., 2002-09-23: Norris Ip, Dean Shea, John Rose, Jasvinder Singh, William Paulsen, John Pierce, Rachida Kebichi, Ted Elkind, David Bailey.

CHANGE LOG AT END OF FILE

Definition in file sc_report.h.

Macro Definition Documentation

sc_assert

#define sc_assert

(

expr

)

Value:

((void)((expr) ? 0 : \
   (::sc_core::sc_assertion_failed(#expr,__FILE__,__LINE__),0)))

Definition at line 270 of file sc_report.h.

SC_NORETURN_

#define SC_NORETURN_   /* nothing */

Definition at line 243 of file sc_report.h.

SC_REPORT_ERROR

#define SC_REPORT_ERROR	(		msg_type,
			msg
	)

Value:

::sc_core::sc_report_handler::report( \
            ::sc_core::SC_ERROR, msg_type, msg, __FILE__, __LINE__ )

Definition at line 223 of file sc_report.h.

SC_REPORT_FATAL

#define SC_REPORT_FATAL	(		msg_type,
			msg
	)

Value:

::sc_core::sc_report_handler::report( \
            ::sc_core::SC_FATAL, msg_type, msg, __FILE__, __LINE__ )

Definition at line 228 of file sc_report.h.

SC_REPORT_INFO

#define SC_REPORT_INFO	(		msg_type,
			msg
	)

Value:

::sc_core::sc_report_handler::report(  \
            ::sc_core::SC_INFO, msg_type, msg, __FILE__, __LINE__ )

Definition at line 207 of file sc_report.h.

SC_REPORT_INFO_VERB

#define SC_REPORT_INFO_VERB	(		msg_type,
			msg,
			verbosity
	)

Value:

::sc_core::sc_report_handler::report(                 \
            ::sc_core::SC_INFO, msg_type, msg, verbosity, \
                               __FILE__ , __LINE__ )

Definition at line 212 of file sc_report.h.

SC_REPORT_WARNING

#define SC_REPORT_WARNING	(		msg_type,
			msg
	)

Value:

::sc_core::sc_report_handler::report(  \
            ::sc_core::SC_WARNING, msg_type, msg, __FILE__, __LINE__ )

Definition at line 218 of file sc_report.h.
