sc_dt::sc_unsigned_bitref_r Class Reference

Proxy class for sc_unsigned bit selection (r-value only). More...

#include <sysc/datatypes/int/sc_unsigned.h>

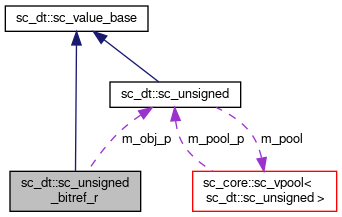

Inheritance diagram for sc_dt::sc_unsigned_bitref_r:

Collaboration diagram for sc_dt::sc_unsigned_bitref_r:

Public Member Functions
virtual	~sc_unsigned_bitref_r ()
	sc_unsigned_bitref_r (const sc_unsigned_bitref_r &a)
int	length () const
	operator uint64 () const
bool	operator! () const
bool	operator~ () const
uint64	value () const
bool	to_bool () const
virtual int	concat_length (bool *xz_present_p) const
virtual uint64	concat_get_uint64 () const
virtual bool	concat_get_ctrl (sc_digit *dst_p, int low_i) const
virtual bool	concat_get_data (sc_digit *dst_p, int low_i) const
void	print (::std::ostream &os=::std::cout) const

Protected Member Functions
	sc_unsigned_bitref_r ()
void	initialize (const sc_unsigned *obj_p, int index_)

Protected Attributes
int	m_index
sc_unsigned *	m_obj_p

Friends
class	sc_unsigned

Detailed Description

Proxy class for sc_unsigned bit selection (r-value only).

Definition at line 639 of file sc_unsigned.h.

Constructor & Destructor Documentation

sc_unsigned_bitref_r() [1/2]

sc_dt::sc_unsigned_bitref_r::sc_unsigned_bitref_r ( )

inlineprotected

Definition at line 647 of file sc_unsigned.h.

~sc_unsigned_bitref_r()

virtual sc_dt::sc_unsigned_bitref_r::~sc_unsigned_bitref_r ( )

inlinevirtual

Definition at line 660 of file sc_unsigned.h.

sc_unsigned_bitref_r() [2/2]

sc_dt::sc_unsigned_bitref_r::sc_unsigned_bitref_r ( const sc_unsigned_bitref_r &  a )

inline

Definition at line 665 of file sc_unsigned.h.

Member Function Documentation

concat_get_ctrl()

virtual bool sc_dt::sc_unsigned_bitref_r::concat_get_ctrl ( sc_digit *  dst_p, int  low_i  ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 697 of file sc_unsigned.h.

concat_get_data()

virtual bool sc_dt::sc_unsigned_bitref_r::concat_get_data ( sc_digit *  dst_p, int  low_i  ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 704 of file sc_unsigned.h.

concat_get_uint64()

virtual uint64 sc_dt::sc_unsigned_bitref_r::concat_get_uint64 ( ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 695 of file sc_unsigned.h.

concat_length()

virtual int sc_dt::sc_unsigned_bitref_r::concat_length ( bool *  xz_present_p ) const

inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 693 of file sc_unsigned.h.

initialize()

void sc_dt::sc_unsigned_bitref_r::initialize ( const sc_unsigned *  obj_p, int  index_  )

inlineprotected

Definition at line 650 of file sc_unsigned.h.

length()

int sc_dt::sc_unsigned_bitref_r::length ( ) const

inline

Definition at line 671 of file sc_unsigned.h.

operator uint64()

sc_dt::sc_unsigned_bitref_r::operator uint64

(

)

const

operator!()

bool sc_dt::sc_unsigned_bitref_r::operator!

(

)

const

operator~()

bool sc_dt::sc_unsigned_bitref_r::operator~

(

)

const

print()

void sc_dt::sc_unsigned_bitref_r::print ( ::std::ostream &  os = ::std::cout ) const

inline

Definition at line 724 of file sc_unsigned.h.

to_bool()

bool sc_dt::sc_unsigned_bitref_r::to_bool ( ) const

inline

Definition at line 687 of file sc_unsigned.h.

value()

uint64 sc_dt::sc_unsigned_bitref_r::value ( ) const

inline

Definition at line 684 of file sc_unsigned.h.

Friends And Related Function Documentation

sc_unsigned

friend class sc_unsigned

friend

Definition at line 641 of file sc_unsigned.h.

Member Data Documentation

m_index

int sc_dt::sc_unsigned_bitref_r::m_index

protected

Definition at line 729 of file sc_unsigned.h.

m_obj_p

sc_unsigned* sc_dt::sc_unsigned_bitref_r::m_obj_p

protected

Definition at line 730 of file sc_unsigned.h.

---

The documentation for this class was generated from the following file:

• sysc/datatypes/int/sc_unsigned.h
