SystemC  2.3.2
Accellera SystemC proof-of-concept library
Public Member Functions | Protected Member Functions | Protected Attributes | Friends | List of all members
sc_dt::sc_unsigned_subref_r Class Reference

Proxy class for sc_unsigned part selection (r-value only). More...

#include <sysc/datatypes/int/sc_unsigned.h>

Inheritance diagram for sc_dt::sc_unsigned_subref_r:
Inheritance graph
[legend]

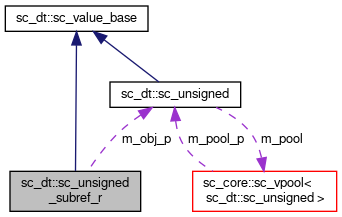

Collaboration diagram for sc_dt::sc_unsigned_subref_r:
Collaboration graph
[legend]

Public Member Functions

virtual ~sc_unsigned_subref_r ()

 sc_unsigned_subref_r (const sc_unsigned_subref_r &a)

int length () const

 operator sc_unsigned () const

int to_int () const

unsigned int to_uint () const

long to_long () const

unsigned long to_ulong () const

int64 to_int64 () const

uint64 to_uint64 () const

double to_double () const

const std::string to_string (sc_numrep numrep=SC_DEC) const

const std::string to_string (sc_numrep numrep, bool w_prefix) const

virtual int concat_length (bool *xz_present_p) const

virtual uint64 concat_get_uint64 () const

virtual bool concat_get_ctrl (sc_digit *dst_p, int low_i) const

virtual bool concat_get_data (sc_digit *dst_p, int low_i) const

bool and_reduce () const

bool nand_reduce () const

bool or_reduce () const

bool nor_reduce () const

bool xor_reduce () const

bool xnor_reduce () const

void print (::std::ostream &os=::std::cout) const


Protected Member Functions

 sc_unsigned_subref_r ()

void initialize (const sc_unsigned *obj_p, int left_, int right_)


Protected Attributes

int m_left

sc_unsigned * m_obj_p

int m_right


Friends

class sc_signed

class sc_unsigned

class sc_unsigned_signal


Detailed Description

Proxy class for sc_unsigned part selection (r-value only).

Definition at line 811 of file sc_unsigned.h.

Constructor & Destructor Documentation

◆ sc_unsigned_subref_r() [1/2]

sc_dt::sc_unsigned_subref_r::sc_unsigned_subref_r ( )
inlineprotected

Definition at line 821 of file sc_unsigned.h.

◆ ~sc_unsigned_subref_r()

virtual sc_dt::sc_unsigned_subref_r::~sc_unsigned_subref_r ( )
inlinevirtual

Definition at line 835 of file sc_unsigned.h.

◆ sc_unsigned_subref_r() [2/2]

sc_dt::sc_unsigned_subref_r::sc_unsigned_subref_r ( const sc_unsigned_subref_r &  a)
inline

Definition at line 841 of file sc_unsigned.h.

Member Function Documentation

◆ and_reduce()

bool sc_dt::sc_unsigned_subref_r::and_reduce ( ) const
inline

Definition at line 2079 of file sc_unsigned.h.

◆ concat_get_ctrl()

virtual bool sc_dt::sc_unsigned_subref_r::concat_get_ctrl ( sc_digit *  dst_p,
int  low_i
) const
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_get_data()

virtual bool sc_dt::sc_unsigned_subref_r::concat_get_data ( sc_digit *  dst_p,
int  low_i
) const
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_get_uint64()

virtual uint64 sc_dt::sc_unsigned_subref_r::concat_get_uint64 ( ) const
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_length()

virtual int sc_dt::sc_unsigned_subref_r::concat_length ( bool *  xz_present_p) const
inlinevirtual

Reimplemented from sc_dt::sc_value_base.

Definition at line 877 of file sc_unsigned.h.

◆ initialize()

void sc_dt::sc_unsigned_subref_r::initialize ( const sc_unsigned *  obj_p,
int  left_,
int  right_
)
inlineprotected

Definition at line 824 of file sc_unsigned.h.

◆ length()

int sc_dt::sc_unsigned_subref_r::length ( ) const
inline

Definition at line 849 of file sc_unsigned.h.

◆ nand_reduce()

bool sc_dt::sc_unsigned_subref_r::nand_reduce ( ) const
inline

Definition at line 2087 of file sc_unsigned.h.

◆ nor_reduce()

bool sc_dt::sc_unsigned_subref_r::nor_reduce ( ) const
inline

Definition at line 2100 of file sc_unsigned.h.

◆ operator sc_unsigned()

sc_dt::sc_unsigned_subref_r::operator sc_unsigned ( ) const

◆ or_reduce()

bool sc_dt::sc_unsigned_subref_r::or_reduce ( ) const
inline

Definition at line 2092 of file sc_unsigned.h.

◆ print()

void sc_dt::sc_unsigned_subref_r::print ( ::std::ostream &  os = ::std::cout) const
inline

Definition at line 897 of file sc_unsigned.h.

◆ to_double()

double sc_dt::sc_unsigned_subref_r::to_double ( ) const

◆ to_int()

int sc_dt::sc_unsigned_subref_r::to_int ( ) const

◆ to_int64()

int64 sc_dt::sc_unsigned_subref_r::to_int64 ( ) const

◆ to_long()

long sc_dt::sc_unsigned_subref_r::to_long ( ) const

◆ to_string() [1/2]

const std::string sc_dt::sc_unsigned_subref_r::to_string ( sc_numrep  numrep = SC_DEC) const

◆ to_string() [2/2]

const std::string sc_dt::sc_unsigned_subref_r::to_string ( sc_numrep  numrep,
bool  w_prefix
) const

◆ to_uint()

unsigned int sc_dt::sc_unsigned_subref_r::to_uint ( ) const

◆ to_uint64()

uint64 sc_dt::sc_unsigned_subref_r::to_uint64 ( ) const

◆ to_ulong()

unsigned long sc_dt::sc_unsigned_subref_r::to_ulong ( ) const

◆ xnor_reduce()

bool sc_dt::sc_unsigned_subref_r::xnor_reduce ( ) const
inline

Definition at line 2115 of file sc_unsigned.h.

◆ xor_reduce()

bool sc_dt::sc_unsigned_subref_r::xor_reduce ( ) const
inline

Definition at line 2105 of file sc_unsigned.h.

Friends And Related Function Documentation

◆ sc_signed

friend class sc_signed
friend

Definition at line 813 of file sc_unsigned.h.

◆ sc_unsigned

friend class sc_unsigned
friend

Definition at line 814 of file sc_unsigned.h.

◆ sc_unsigned_signal

friend class sc_unsigned_signal
friend

Definition at line 815 of file sc_unsigned.h.

Member Data Documentation

◆ m_left

int sc_dt::sc_unsigned_subref_r::m_left
protected

Definition at line 902 of file sc_unsigned.h.

◆ m_obj_p

sc_unsigned* sc_dt::sc_unsigned_subref_r::m_obj_p
protected

Definition at line 903 of file sc_unsigned.h.

◆ m_right

int sc_dt::sc_unsigned_subref_r::m_right
protected

Definition at line 904 of file sc_unsigned.h.

The documentation for this class was generated from the following file:
