tlm_phase.h File Reference

#include <string>
#include <iostream>
#include <typeinfo>
#include <vector>
#include "sysc/kernel/sc_cmnhdr.h"
#include "sysc/kernel/sc_macros.h"

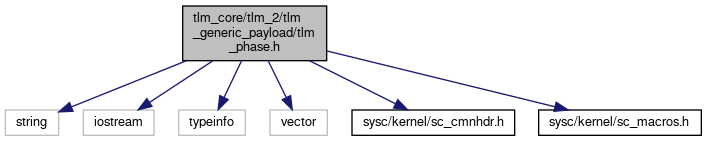

Include dependency graph for tlm_phase.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	tlm::tlm_phase

Namespaces
	tlm

Macros
#define	TLM_DECLARE_EXTENDED_PHASE(name_arg)
#define	DECLARE_EXTENDED_PHASE(NameArg)   TLM_DECLARE_EXTENDED_PHASE( NameArg )

Functions
std::ostream &	tlm::operator<< (std::ostream &s, const tlm_phase &p)

Variables
	UNINITIALIZED_PHASE =0
	BEGIN_REQ =1
	END_REQ
	BEGIN_RESP

Macro Definition Documentation

DECLARE_EXTENDED_PHASE

#define DECLARE_EXTENDED_PHASE

(

NameArg

)

TLM_DECLARE_EXTENDED_PHASE( NameArg )

Definition at line 102 of file tlm_phase.h.

TLM_DECLARE_EXTENDED_PHASE

#define TLM_DECLARE_EXTENDED_PHASE

(

name_arg

)

Value:

static class SC_CONCAT_HELPER_(tlm_phase_, name_arg) \
    : public ::tlm::tlm_phase \
  { \
    typedef SC_CONCAT_HELPER_(tlm_phase_, name_arg) this_type; \
  public: \
    SC_CONCAT_HELPER_(tlm_phase_, name_arg)() /* register extended phase */ \
      : ::tlm::tlm_phase( typeid(*this), SC_STRINGIFY_HELPER_(name_arg) ) \
    {} \
    \
    static const this_type& get_phase() /* needed only for IEEE 1666-2011 */ \
      { static this_type this_; return this_; } \
  } \
  const name_arg

Definition at line 86 of file tlm_phase.h.

Variable Documentation

BEGIN_REQ

BEGIN_REQ =1

Definition at line 36 of file tlm_phase.h.

BEGIN_RESP

BEGIN_RESP

Definition at line 36 of file tlm_phase.h.

END_REQ

END_REQ

Definition at line 36 of file tlm_phase.h.

UNINITIALIZED_PHASE

UNINITIALIZED_PHASE =0

Definition at line 35 of file tlm_phase.h.
