Concatenation support. More...

#include "sysc/kernel/sc_object.h"
#include "sysc/datatypes/misc/sc_value_base.h"
#include "sysc/utils/sc_temporary.h"
#include "sysc/datatypes/bit/sc_bv.h"
#include "sysc/datatypes/bit/sc_lv.h"
#include "sysc/datatypes/int/sc_int_base.h"
#include "sysc/datatypes/int/sc_uint_base.h"
#include "sysc/datatypes/int/sc_signed.h"
#include "sysc/datatypes/int/sc_unsigned.h"

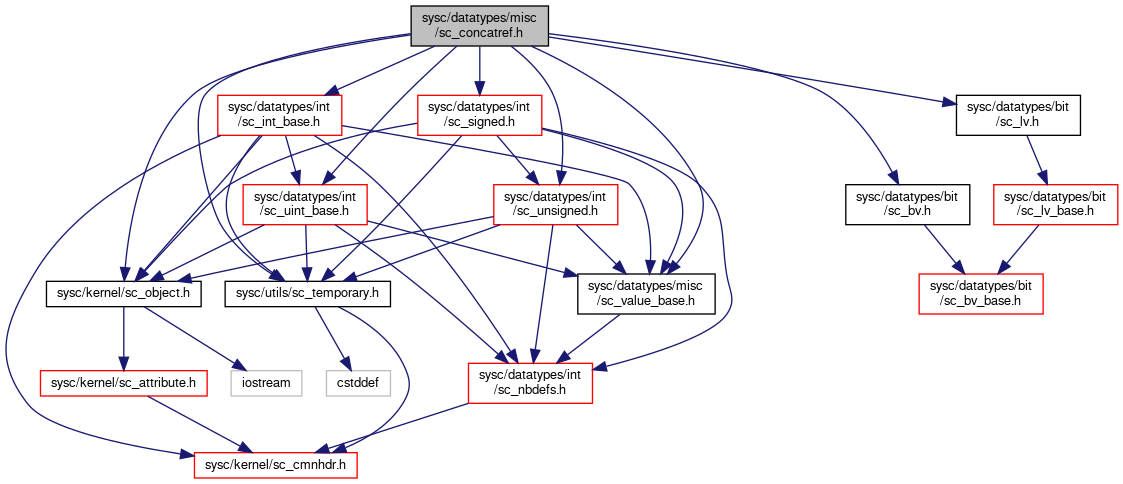

Include dependency graph for sc_concatref.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_dt::sc_concatref
	Proxy class for sized bit concatenation. More...

class	sc_dt::sc_concat_bool
	Proxy class for read-only boolean values in concatenations. More...

Namespaces
	sc_dt

	sc_core

Macros
#define	SC_CONCAT_OP_TYPE(RESULT, OP, OTHER_TYPE)

#define	SC_CONCAT_OP(RESULT, OP)

#define	SC_CONCAT_BOOL_OP(OP)

Functions
bool	sc_dt::and_reduce (const sc_concatref &a)

bool	sc_dt::nand_reduce (const sc_concatref &a)

bool	sc_dt::or_reduce (const sc_concatref &a)

bool	sc_dt::nor_reduce (const sc_concatref &a)

bool	sc_dt::xor_reduce (const sc_concatref &a)

bool	sc_dt::xnor_reduce (const sc_concatref &a)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, uint64 shift)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, int64 shift)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, unsigned long shift)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, int shift)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, unsigned int shift)

const sc_unsigned	sc_dt::operator<< (const sc_concatref &target, long shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, uint64 shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, int64 shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, unsigned long shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, int shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, unsigned int shift)

const sc_unsigned	sc_dt::operator>> (const sc_concatref &target, long shift)

inline ::std::ostream &	sc_dt::operator<< (::std::ostream &os, const sc_concatref &v)

inline ::std::istream &	sc_dt::operator>> (::std::istream &is, sc_concatref &a)

sc_dt::sc_concatref &	sc_dt::concat (sc_dt::sc_value_base &a, sc_dt::sc_value_base &b)

const sc_dt::sc_concatref &	sc_dt::concat (const sc_dt::sc_value_base &a, const sc_dt::sc_value_base &b)

const sc_dt::sc_concatref &	sc_dt::concat (const sc_dt::sc_value_base &a, bool b)

const sc_dt::sc_concatref &	sc_dt::concat (bool a, const sc_dt::sc_value_base &b)

sc_dt::sc_concatref &	sc_dt::operator, (sc_dt::sc_value_base &a, sc_dt::sc_value_base &b)

const sc_dt::sc_concatref &	sc_dt::operator, (const sc_dt::sc_value_base &a, const sc_dt::sc_value_base &b)

const sc_dt::sc_concatref &	sc_dt::operator, (const sc_dt::sc_value_base &a, bool b)

const sc_dt::sc_concatref &	sc_dt::operator, (bool a, const sc_dt::sc_value_base &b)

Variables
sc_byte_heap SC_API	sc_core::sc_temp_heap

Detailed Description

Concatenation support.

Original Author: Andy Goodrich, Forte Design, Inc.

Definition in file sc_concatref.h.

Macro Definition Documentation

◆ SC_CONCAT_BOOL_OP

#define SC_CONCAT_BOOL_OP ( OP )

Value:

inline bool operator OP ( const sc_concatref& a, const sc_concatref& b ) \
    { \
        return a.value() OP b.value(); \
    }  \
    SC_CONCAT_OP_TYPE(bool,OP,int) \
    SC_CONCAT_OP_TYPE(bool,OP,long) \
    SC_CONCAT_OP_TYPE(bool,OP,int64) \
    SC_CONCAT_OP_TYPE(bool,OP,unsigned int) \
    SC_CONCAT_OP_TYPE(bool,OP,unsigned long) \
    SC_CONCAT_OP_TYPE(bool,OP,uint64) \
    SC_CONCAT_OP_TYPE(bool,OP,const sc_int_base&) \
    SC_CONCAT_OP_TYPE(bool,OP,const sc_uint_base&) \
    SC_CONCAT_OP_TYPE(bool,OP,const sc_signed&) \
    SC_CONCAT_OP_TYPE(bool,OP,const sc_unsigned&) \
    inline bool operator OP ( const sc_concatref& a, bool b ) \
    { \
        return a.value() OP (int)b; \
    } \
    inline bool operator OP ( bool a, const sc_concatref& b ) \
    { \
        return (int)a OP b.value(); \
    }

Definition at line 727 of file sc_concatref.h.

◆ SC_CONCAT_OP

#define SC_CONCAT_OP	(	RESULT,
		OP
	)

Value:

inline RESULT operator OP ( const sc_concatref& a, const sc_concatref& b ) \
    { \
        return a.value() OP b.value(); \
    }  \
    SC_CONCAT_OP_TYPE(const sc_signed,OP,int) \
    SC_CONCAT_OP_TYPE(const sc_signed,OP,long) \
    SC_CONCAT_OP_TYPE(const sc_signed,OP,int64) \
    SC_CONCAT_OP_TYPE(RESULT,OP,unsigned int) \
    SC_CONCAT_OP_TYPE(RESULT,OP,unsigned long) \
    SC_CONCAT_OP_TYPE(RESULT,OP,uint64) \
    SC_CONCAT_OP_TYPE(const sc_signed,OP,const sc_int_base&) \
    SC_CONCAT_OP_TYPE(RESULT,OP,const sc_uint_base&) \
    SC_CONCAT_OP_TYPE(const sc_signed,OP,const sc_signed&) \
    SC_CONCAT_OP_TYPE(RESULT,OP,const sc_unsigned&) \
    inline RESULT operator OP ( const sc_concatref& a, bool b ) \
    { \
        return a.value() OP (int)b; \
    } \
    inline RESULT operator OP ( bool a, const sc_concatref& b ) \
    { \
        return (int)a OP b.value(); \
    }

Definition at line 702 of file sc_concatref.h.

◆ SC_CONCAT_OP_TYPE

#define SC_CONCAT_OP_TYPE	(	RESULT,
		OP,
		OTHER_TYPE
	)

Value:

inline RESULT operator OP ( const sc_concatref& a, OTHER_TYPE b ) \
    { \
        return a.value() OP b; \
    } \
    inline RESULT operator OP ( OTHER_TYPE a, const sc_concatref& b ) \
    { \
        return a OP b.value(); \
    }

Definition at line 690 of file sc_concatref.h.
