sc_module.h File Reference

Base class of all hierarchical modules and channels. More...

#include "sysc/kernel/sc_kernel_ids.h"
#include "sysc/kernel/sc_process.h"
#include "sysc/kernel/sc_module_name.h"
#include "sysc/kernel/sc_sensitive.h"
#include "sysc/kernel/sc_time.h"
#include "sysc/kernel/sc_wait.h"
#include "sysc/kernel/sc_wait_cthread.h"
#include "sysc/kernel/sc_process_handle.h"
#include "sysc/utils/sc_list.h"

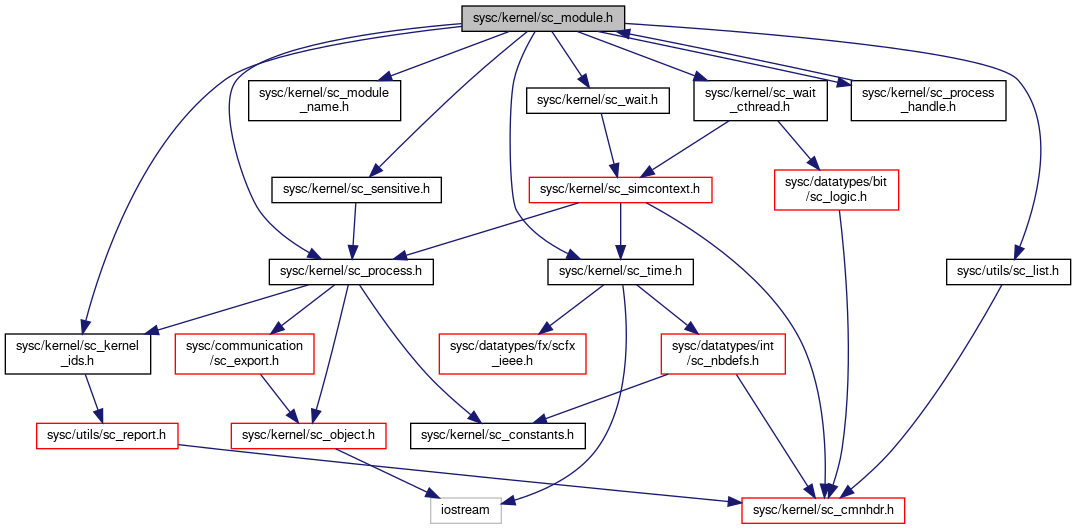

Include dependency graph for sc_module.h:

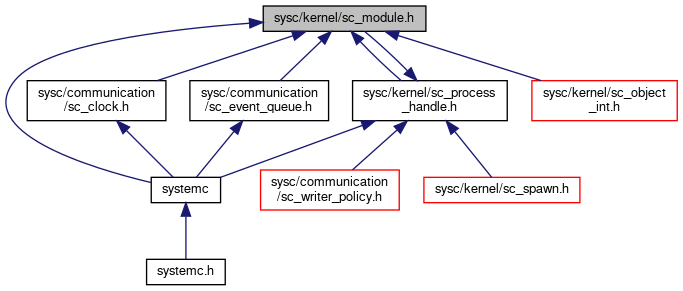

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sc_core::sc_in< T >
class	sc_core::sc_inout< T >
class	sc_core::sc_out< T >
struct	sc_core::sc_bind_proxy
	Struct for temporarily storing a pointer to an interface or port. More...
class	sc_core::sc_module
	Base class for all structural entities. More...

Namespaces
	sc_core

Macros
#define	SC_NEW(x)   ::sc_core::sc_module_dynalloc(new x);
#define	SC_MODULE(user_module_name)   struct user_module_name : ::sc_core::sc_module
#define	SC_CTOR(user_module_name)
#define	SC_HAS_PROCESS(user_module_name)   typedef user_module_name SC_CURRENT_USER_MODULE
#define	declare_method_process(handle, name, host_tag, func)
#define	declare_thread_process(handle, name, host_tag, func)
#define	declare_cthread_process(handle, name, host_tag, func, edge)
#define	SC_CTHREAD(func, edge)
#define	SC_METHOD(func)
#define	SC_THREAD(func)

Typedefs
typedef sc_module	sc_core::sc_channel
typedef sc_module	sc_core::sc_behavior

Functions
SC_API sc_module *	sc_core::sc_module_dynalloc (sc_module *)

Variables
SC_API const sc_bind_proxy	sc_core::SC_BIND_PROXY_NIL

Detailed Description

Base class of all hierarchical modules and channels.

Original Author: Stan Y. Liao, Synopsys, Inc. Martin Janssen, Synopsys, Inc.

CHANGE LOG AT THE END OF THE FILE

Definition in file sc_module.h.

Macro Definition Documentation

declare_cthread_process

#define declare_cthread_process	(		handle,
			name,
			host_tag,
			func,
			edge
	)

Value:

{                                                               \
        ::sc_core::sc_process_handle handle =                     \
	     sc_core::sc_get_curr_simcontext()->create_cthread_process( \
            name,  false,          \
                     SC_MAKE_FUNC_PTR( host_tag, func ), this, 0 ); \
        this->sensitive.operator() ( handle, edge );\
    }

Definition at line 446 of file sc_module.h.

declare_method_process

#define declare_method_process	(		handle,
			name,
			host_tag,
			func
	)

Value:

{                                                                   \
        ::sc_core::sc_process_handle handle =                      \
	    sc_core::sc_get_curr_simcontext()->create_method_process( \
                name,  false, SC_MAKE_FUNC_PTR( host_tag, func ), \
                this, 0 ); \
        this->sensitive << handle;                                        \
        this->sensitive_pos << handle;                                    \
        this->sensitive_neg << handle;                                    \
    }

Definition at line 424 of file sc_module.h.

declare_thread_process

#define declare_thread_process	(		handle,
			name,
			host_tag,
			func
	)

Value:

{                                                               \
        ::sc_core::sc_process_handle handle =                      \
	     sc_core::sc_get_curr_simcontext()->create_thread_process( \
                 name,  false,           \
                 SC_MAKE_FUNC_PTR( host_tag, func ), this, 0 ); \
        this->sensitive << handle;                                        \
        this->sensitive_pos << handle;                                    \
        this->sensitive_neg << handle;                                    \
    }

Definition at line 435 of file sc_module.h.

SC_CTHREAD

#define SC_CTHREAD	(		func,
			edge
	)

Value:

declare_cthread_process( func ## _handle,                                 \
                             #func,                                           \
                             SC_CURRENT_USER_MODULE,                          \
                             func,                                            \
                             edge )

Definition at line 456 of file sc_module.h.

SC_CTOR

#define SC_CTOR

(

user_module_name

)

Value:

typedef user_module_name SC_CURRENT_USER_MODULE;                          \
    user_module_name( ::sc_core::sc_module_name )

Definition at line 406 of file sc_module.h.

SC_HAS_PROCESS

#define SC_HAS_PROCESS

(

user_module_name

)

typedef user_module_name SC_CURRENT_USER_MODULE

Definition at line 412 of file sc_module.h.

SC_METHOD

#define SC_METHOD

(

func

)

Value:

declare_method_process( func ## _handle,                                  \
                            #func,                                            \
                            SC_CURRENT_USER_MODULE,                           \
                            func )

Definition at line 464 of file sc_module.h.

SC_MODULE

#define SC_MODULE

(

user_module_name

)

struct user_module_name : ::sc_core::sc_module

Definition at line 402 of file sc_module.h.

SC_NEW

#define SC_NEW

(

x

)

::sc_core::sc_module_dynalloc(new x);

Definition at line 394 of file sc_module.h.

SC_THREAD

#define SC_THREAD

(

func

)

Value:

declare_thread_process( func ## _handle,                                  \
                            #func,                                            \
                            SC_CURRENT_USER_MODULE,                           \
                            func )

Definition at line 471 of file sc_module.h.
