sc_trace.h File Reference

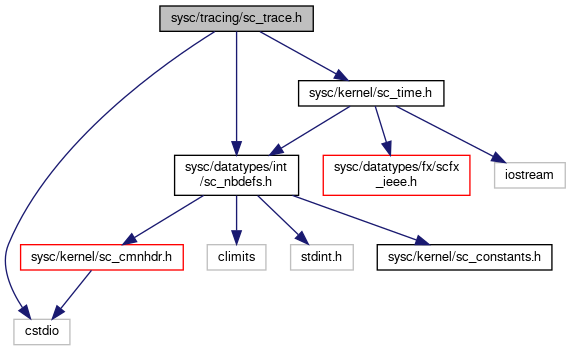

Include dependency graph for sc_trace.h:

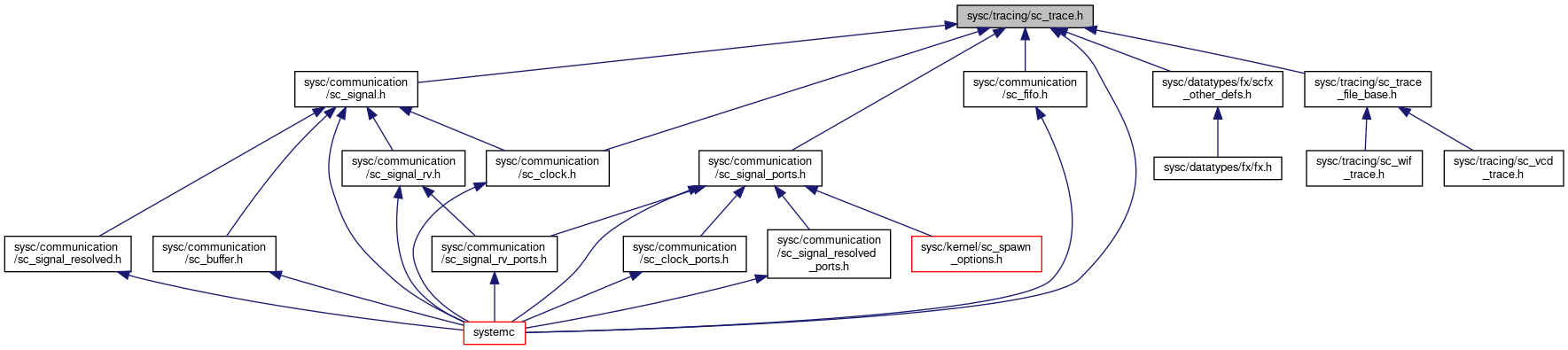

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | sc_core::sc_signal_in_if< T > |
| class | sc_core::sc_trace_file |
Namespaces | |
| sc_dt | |
| sc_core | |
Macros | |
| #define | DECL_TRACE_METHOD_A(tp) |
| #define | DECL_TRACE_METHOD_B(tp) |
| #define | DECL_TRACE_FUNC_REF_A(tp) |
| #define | DECL_TRACE_FUNC_PTR_A(tp) |
| #define | DECL_TRACE_FUNC_A(tp) |
| #define | DECL_TRACE_FUNC_REF_B(tp) |
| #define | DECL_TRACE_FUNC_PTR_B(tp) |
| #define | DECL_TRACE_FUNC_B(tp) |
Functions | |
| template<class T > | |
| void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< T > &object, const std::string &name) |
| template<class T > | |
| void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< T > &object, const char *name) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< char > &object, const std::string &name, int width) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< short > &object, const std::string &name, int width) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< int > &object, const std::string &name, int width) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const sc_signal_in_if< long > &object, const std::string &name, int width) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const unsigned int &object, const std::string &name, const char **enum_literals) |
| SC_API void | sc_core::sc_trace (sc_trace_file *tf, const void *object, const std::string &name) |
| SC_API void | sc_core::sc_trace_delta_cycles (sc_trace_file *tf, bool on=true) |
| SC_API void | sc_core::sc_write_comment (sc_trace_file *tf, const std::string &comment) |
| SC_API void | sc_core::tprintf (sc_trace_file *tf, const char *format,...) |
| SC_API sc_trace_file * | sc_core::sc_create_vcd_trace_file (const char *name) |
| SC_API void | sc_core::sc_close_vcd_trace_file (sc_trace_file *tf) |
| SC_API sc_trace_file * | sc_core::sc_create_wif_trace_file (const char *name) |
| SC_API void | sc_core::sc_close_wif_trace_file (sc_trace_file *tf) |
Macro Definition Documentation
◆ DECL_TRACE_FUNC_A
| #define DECL_TRACE_FUNC_A | ( | tp | ) |
Value:
DECL_TRACE_FUNC_REF_A(tp) \
DECL_TRACE_FUNC_PTR_A(tp)
Definition at line 195 of file sc_trace.h.
◆ DECL_TRACE_FUNC_B
| #define DECL_TRACE_FUNC_B | ( | tp | ) |
Value:
DECL_TRACE_FUNC_REF_B(tp) \
DECL_TRACE_FUNC_PTR_B(tp)
Definition at line 211 of file sc_trace.h.
◆ DECL_TRACE_FUNC_PTR_A
| #define DECL_TRACE_FUNC_PTR_A | ( | tp | ) |
Value:
sc_trace( sc_trace_file* tf, \
const tp* object, \
const std::string& name ); \
SC_API void sc_trace(sc_trace_file *tf, const void *object, const std::string &name)
Definition at line 189 of file sc_trace.h.
◆ DECL_TRACE_FUNC_PTR_B
| #define DECL_TRACE_FUNC_PTR_B | ( | tp | ) |
Value:
int width = 8 * sizeof( tp ) );
SC_API void sc_trace(sc_trace_file *tf, const void *object, const std::string &name)
Definition at line 205 of file sc_trace.h.
◆ DECL_TRACE_FUNC_REF_A
| #define DECL_TRACE_FUNC_REF_A | ( | tp | ) |
Value:
sc_trace( sc_trace_file* tf, \
const tp& object, \
const std::string& name );
SC_API void sc_trace(sc_trace_file *tf, const void *object, const std::string &name)
Definition at line 183 of file sc_trace.h.
◆ DECL_TRACE_FUNC_REF_B
| #define DECL_TRACE_FUNC_REF_B | ( | tp | ) |
Value:
int width = 8 * sizeof( tp ) );
SC_API void sc_trace(sc_trace_file *tf, const void *object, const std::string &name)
Definition at line 199 of file sc_trace.h.
◆ DECL_TRACE_METHOD_A
| #define DECL_TRACE_METHOD_A | ( | tp | ) |
Value:
virtual void trace( const tp& object, \
const std::string& name ) = 0;
Definition at line 96 of file sc_trace.h.
◆ DECL_TRACE_METHOD_B
| #define DECL_TRACE_METHOD_B | ( | tp | ) |
Value:
virtual void trace( const tp& object, \
const std::string& name, \
int width ) = 0;
Definition at line 100 of file sc_trace.h.
