sc_core::sc_trace_file Class Reference

#include <sysc/tracing/sc_trace.h>

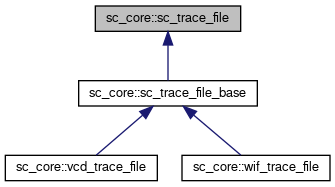

Inheritance diagram for sc_core::sc_trace_file:

Public Member Functions
	sc_trace_file ()
virtual void	trace (const unsigned int &object, const std::string &name, const char **enum_literals)=0
virtual void	write_comment (const std::string &comment)=0
virtual void	space (int n)
virtual void	delta_cycles (bool flag)
virtual void	set_time_unit (double v, sc_time_unit tu)=0

Protected Member Functions
virtual void	cycle (bool delta_cycle)=0
const sc_dt::uint64 &	event_trigger_stamp (const sc_event &event) const
virtual	~sc_trace_file ()

Friends
class	sc_simcontext

Detailed Description

Definition at line 83 of file sc_trace.h.

Constructor & Destructor Documentation

sc_trace_file()

sc_core::sc_trace_file::sc_trace_file

(

)

~sc_trace_file()

virtual sc_core::sc_trace_file::~sc_trace_file ( )

inlineprotectedvirtual

Definition at line 172 of file sc_trace.h.

Member Function Documentation

cycle()

virtual void sc_core::sc_trace_file::cycle ( bool  delta_cycle )

protectedpure virtual

Implemented in sc_core::vcd_trace_file, and sc_core::wif_trace_file.

delta_cycles()

virtual void sc_core::sc_trace_file::delta_cycles ( bool  flag )

virtual

Reimplemented in sc_core::sc_trace_file_base.

event_trigger_stamp()

const sc_dt::uint64& sc_core::sc_trace_file::event_trigger_stamp ( const sc_event &  event ) const

protected

set_time_unit()

virtual void sc_core::sc_trace_file::set_time_unit ( double  v, sc_time_unit  tu  )

pure virtual

Implemented in sc_core::sc_trace_file_base.

space()

virtual void sc_core::sc_trace_file::space ( int  n )

virtual

trace()

virtual void sc_core::sc_trace_file::trace ( const unsigned int &  object, const std::string &  name, const char **  enum_literals  )

pure virtual

write_comment()

virtual void sc_core::sc_trace_file::write_comment ( const std::string &  comment )

pure virtual

Implemented in sc_core::vcd_trace_file, and sc_core::wif_trace_file.

Friends And Related Function Documentation

sc_simcontext

friend class sc_simcontext

friend

Definition at line 85 of file sc_trace.h.

---

The documentation for this class was generated from the following file:

• sysc/tracing/sc_trace.h
