sc_core::vcd_trace_file Class Referenceabstract

#include <sysc/tracing/sc_vcd_trace.h>

Inheritance diagram for sc_core::vcd_trace_file:
Inheritance graph
[legend]

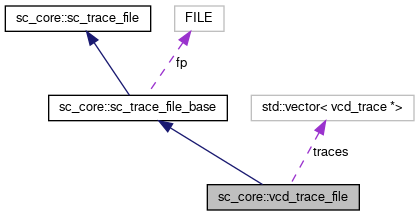

Collaboration diagram for sc_core::vcd_trace_file:
Collaboration graph
[legend]

Public Types

enum  vcd_enum {
  VCD_WIRE =0, VCD_REAL, VCD_EVENT, VCD_TIME,
  VCD_LAST
}

typedef sc_time::value_type unit_type


Public Member Functions

 vcd_trace_file (const char *name)

 ~vcd_trace_file ()

std::string obtain_name ()

const char * filename () const

bool delta_cycles () const

virtual void delta_cycles (bool flag)

virtual void set_time_unit (double v, sc_time_unit tu)

virtual void trace (const unsigned int &object, const std::string &name, const char **enum_literals)=0

virtual void space (int n)


Public Attributes

std::vector< vcd_trace * > traces


Protected Member Functions

virtual void trace (const sc_time &object, const std::string &name)

virtual void trace (const sc_event &object, const std::string &name)

void trace (const bool &object, const std::string &name)

virtual void trace (const sc_dt::sc_bit &object, const std::string &name)

void trace (const sc_dt::sc_logic &object, const std::string &name)

void trace (const unsigned char &object, const std::string &name, int width)

void trace (const unsigned short &object, const std::string &name, int width)

void trace (const unsigned int &object, const std::string &name, int width)

void trace (const unsigned long &object, const std::string &name, int width)

void trace (const char &object, const std::string &name, int width)

void trace (const short &object, const std::string &name, int width)

void trace (const int &object, const std::string &name, int width)

void trace (const long &object, const std::string &name, int width)

void trace (const sc_dt::int64 &object, const std::string &name, int width)

void trace (const sc_dt::uint64 &object, const std::string &name, int width)

void trace (const float &object, const std::string &name)

void trace (const double &object, const std::string &name)

void trace (const sc_dt::sc_uint_base &object, const std::string &name)

void trace (const sc_dt::sc_int_base &object, const std::string &name)

void trace (const sc_dt::sc_unsigned &object, const std::string &name)

void trace (const sc_dt::sc_signed &object, const std::string &name)

void trace (const sc_dt::sc_fxval &object, const std::string &name)

void trace (const sc_dt::sc_fxval_fast &object, const std::string &name)

void trace (const sc_dt::sc_fxnum &object, const std::string &name)

void trace (const sc_dt::sc_fxnum_fast &object, const std::string &name)

template<class T >
void traceT (const T &object, const std::string &name, vcd_enum type=VCD_WIRE)

virtual void trace (const sc_dt::sc_bv_base &object, const std::string &name)

virtual void trace (const sc_dt::sc_lv_base &object, const std::string &name)

void trace (const unsigned &object, const std::string &name, const char **enum_literals)

void write_comment (const std::string &comment)

void cycle (bool delta_cycle)

bool initialize ()

void open_fp ()

bool add_trace_check (const std::string &name) const

bool has_low_units () const

int low_units_len () const

void timestamp_in_trace_units (unit_type &high, unit_type &low) const

const sc_dt::uint64 & event_trigger_stamp (const sc_event &event) const


Static Protected Member Functions

static sc_time::value_type unit_to_fs (sc_time_unit tu)

static std::string fs_unit_to_str (sc_trace_file_base::unit_type tu)


Protected Attributes

FILE * fp

unit_type trace_unit_fs

unit_type kernel_unit_fs

bool timescale_set_by_user


Detailed Description

Definition at line 66 of file sc_vcd_trace.h.

Member Typedef Documentation

◆ unit_type

typedef sc_time::value_type sc_core::sc_trace_file_base::unit_type
inherited

Definition at line 71 of file sc_trace_file_base.h.

Member Enumeration Documentation

◆ vcd_enum

enum sc_core::vcd_trace_file::vcd_enum
Enumerator
VCD_WIRE
VCD_REAL
VCD_EVENT
VCD_TIME
VCD_LAST

Definition at line 71 of file sc_vcd_trace.h.

Constructor & Destructor Documentation

◆ vcd_trace_file()

sc_core::vcd_trace_file::vcd_trace_file ( const char *  name)

◆ ~vcd_trace_file()

sc_core::vcd_trace_file::~vcd_trace_file ( )

Member Function Documentation

◆ add_trace_check()

bool sc_core::sc_trace_file_base::add_trace_check ( const std::string &  name) const
protectedinherited

◆ cycle()

void sc_core::vcd_trace_file::cycle ( bool  delta_cycle)
protectedvirtual

Implements sc_core::sc_trace_file.

◆ delta_cycles() [1/2]

bool sc_core::sc_trace_file_base::delta_cycles ( ) const
inlineinherited

Definition at line 76 of file sc_trace_file_base.h.

◆ delta_cycles() [2/2]

virtual void sc_core::sc_trace_file_base::delta_cycles ( bool  flag)
virtualinherited

Reimplemented from sc_core::sc_trace_file.

◆ event_trigger_stamp()

const sc_dt::uint64& sc_core::sc_trace_file::event_trigger_stamp ( const sc_event &  event) const
protectedinherited

◆ filename()

const char* sc_core::sc_trace_file_base::filename ( ) const
inlineinherited

Definition at line 73 of file sc_trace_file_base.h.

◆ fs_unit_to_str()

static std::string sc_core::sc_trace_file_base::fs_unit_to_str ( sc_trace_file_base::unit_type  tu)
staticprotectedinherited

◆ has_low_units()

bool sc_core::sc_trace_file_base::has_low_units ( ) const
protectedinherited

◆ initialize()

bool sc_core::sc_trace_file_base::initialize ( )
protectedinherited

◆ low_units_len()

int sc_core::sc_trace_file_base::low_units_len ( ) const
protectedinherited

◆ obtain_name()

std::string sc_core::vcd_trace_file::obtain_name ( )

◆ open_fp()

void sc_core::sc_trace_file_base::open_fp ( )
protectedinherited

◆ set_time_unit()

virtual void sc_core::sc_trace_file_base::set_time_unit ( double  v,
sc_time_unit  tu
)
virtualinherited

Implements sc_core::sc_trace_file.

◆ space()

virtual void sc_core::sc_trace_file::space ( int  n)
virtualinherited

◆ timestamp_in_trace_units()

void sc_core::sc_trace_file_base::timestamp_in_trace_units ( unit_type &  high,
unit_type &  low
) const
protectedinherited

◆ trace() [1/29]

virtual void sc_core::vcd_trace_file::trace ( const sc_time &  object,
const std::string &  name
)
protectedvirtual

◆ trace() [2/29]

virtual void sc_core::vcd_trace_file::trace ( const sc_event &  object,
const std::string &  name
)
protectedvirtual

◆ trace() [3/29]

void sc_core::vcd_trace_file::trace ( const bool &  object,
const std::string &  name
)
protected

◆ trace() [4/29]

virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_bit &  object,
const std::string &  name
)
protectedvirtual

◆ trace() [5/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_logic &  object,
const std::string &  name
)
protected

◆ trace() [6/29]

void sc_core::vcd_trace_file::trace ( const unsigned char &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [7/29]

void sc_core::vcd_trace_file::trace ( const unsigned short &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [8/29]

void sc_core::vcd_trace_file::trace ( const unsigned int &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [9/29]

void sc_core::vcd_trace_file::trace ( const unsigned long &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [10/29]

void sc_core::vcd_trace_file::trace ( const char &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [11/29]

void sc_core::vcd_trace_file::trace ( const short &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [12/29]

void sc_core::vcd_trace_file::trace ( const int &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [13/29]

void sc_core::vcd_trace_file::trace ( const long &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [14/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::int64 &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [15/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::uint64 &  object,
const std::string &  name,
int  width
)
protected

◆ trace() [16/29]

void sc_core::vcd_trace_file::trace ( const float &  object,
const std::string &  name
)
protected

◆ trace() [17/29]

void sc_core::vcd_trace_file::trace ( const double &  object,
const std::string &  name
)
protected

◆ trace() [18/29]

virtual void sc_core::sc_trace_file::trace ( const unsigned int &  object,
const std::string &  name,
const char **  enum_literals
)
pure virtualinherited

◆ trace() [19/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_uint_base &  object,
const std::string &  name
)
protected

◆ trace() [20/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_int_base &  object,
const std::string &  name
)
protected

◆ trace() [21/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_unsigned &  object,
const std::string &  name
)
protected

◆ trace() [22/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_signed &  object,
const std::string &  name
)
protected

◆ trace() [23/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxval &  object,
const std::string &  name
)
protected

◆ trace() [24/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxval_fast &  object,
const std::string &  name
)
protected

◆ trace() [25/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxnum &  object,
const std::string &  name
)
protected

◆ trace() [26/29]

void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxnum_fast &  object,
const std::string &  name
)
protected

◆ trace() [27/29]

virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_bv_base &  object,
const std::string &  name
)
protectedvirtual

◆ trace() [28/29]

virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_lv_base &  object,
const std::string &  name
)
protectedvirtual

◆ trace() [29/29]

void sc_core::vcd_trace_file::trace ( const unsigned &  object,
const std::string &  name,
const char **  enum_literals
)
protected

◆ traceT()

template<class T >
void sc_core::vcd_trace_file::traceT ( const T &  object,
const std::string &  name,
vcd_enum  type = VCD_WIRE
)
inlineprotected

Definition at line 177 of file sc_vcd_trace.h.

◆ unit_to_fs()

static sc_time::value_type sc_core::sc_trace_file_base::unit_to_fs ( sc_time_unit  tu)
staticprotectedinherited

◆ write_comment()

void sc_core::vcd_trace_file::write_comment ( const std::string &  comment)
protectedvirtual

Implements sc_core::sc_trace_file.

Member Data Documentation

◆ fp

FILE* sc_core::sc_trace_file_base::fp
protectedinherited

Definition at line 121 of file sc_trace_file_base.h.

◆ kernel_unit_fs

unit_type sc_core::sc_trace_file_base::kernel_unit_fs
protectedinherited

Definition at line 124 of file sc_trace_file_base.h.

◆ timescale_set_by_user

bool sc_core::sc_trace_file_base::timescale_set_by_user
protectedinherited

Definition at line 125 of file sc_trace_file_base.h.

◆ trace_unit_fs

unit_type sc_core::sc_trace_file_base::trace_unit_fs
protectedinherited

Definition at line 123 of file sc_trace_file_base.h.

◆ traces

std::vector<vcd_trace*> sc_core::vcd_trace_file::traces

Definition at line 230 of file sc_vcd_trace.h.

The documentation for this class was generated from the following file:
