sc_core::sc_interface Class Reference

Abstract base class of all interface classes. More...

#include <sysc/communication/sc_interface.h>

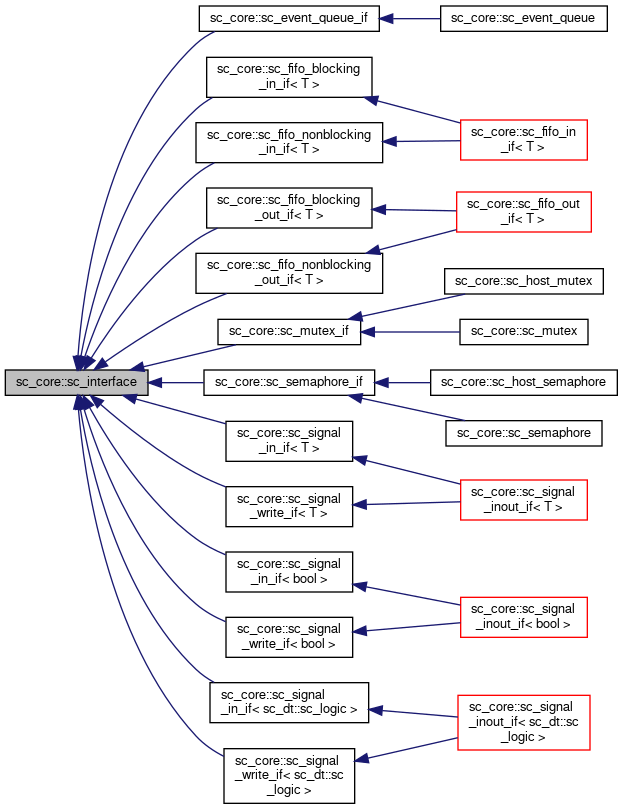

Inheritance diagram for sc_core::sc_interface:

Public Member Functions
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()

Protected Member Functions
	sc_interface ()

Detailed Description

Abstract base class of all interface classes.

Warning

Direct inheritance from this class must be done virtual.

Definition at line 51 of file sc_interface.h.

Constructor & Destructor Documentation

~sc_interface()

virtual sc_core::sc_interface::~sc_interface ( )

virtual

sc_interface()

sc_core::sc_interface::sc_interface ( )

protected

Member Function Documentation

default_event()

virtual const sc_event& sc_core::sc_interface::default_event ( ) const

virtual

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_event_queue.

register_port()

virtual void sc_core::sc_interface::register_port ( sc_port_base &  port_, const char *  if_typename_  )

virtual

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_fifo< T >.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_interface.h
