sc_core::sc_port_base Class Reference

Abstract base class for class sc_port_b. More...

#include <sysc/communication/sc_port.h>

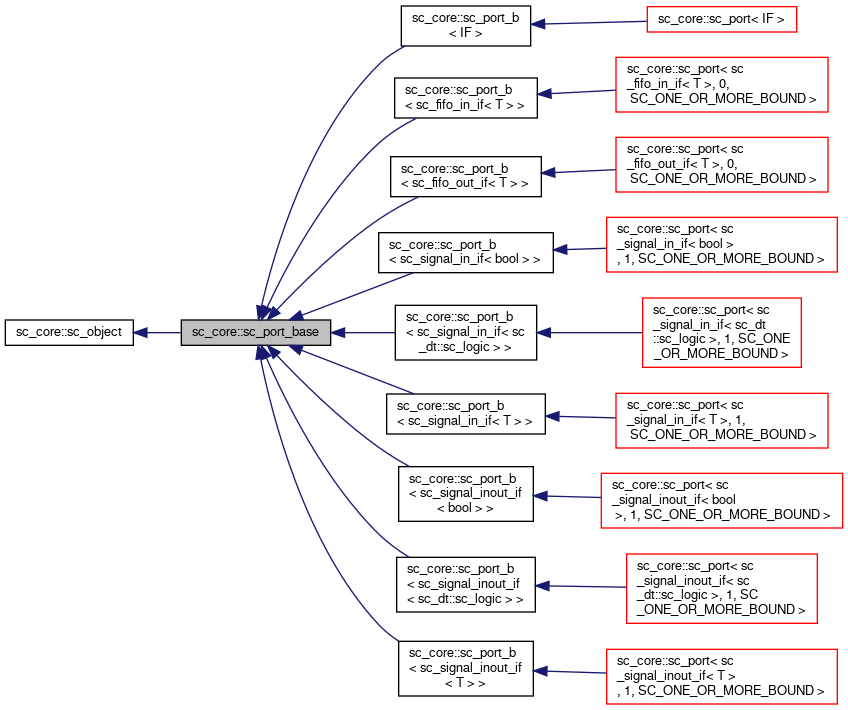

Inheritance diagram for sc_core::sc_port_base:

Collaboration diagram for sc_core::sc_port_base:

Public Types
typedef sc_port_base	this_type
typedef unsigned	phase_cb_mask

Public Member Functions
int	bind_count ()
virtual sc_interface *	get_interface ()=0
virtual const sc_interface *	get_interface () const =0
virtual const char *	kind () const
virtual sc_type_index	get_interface_type () const =0
const char *	name () const
const char *	basename () const
virtual void	print (::std::ostream &os=::std::cout) const
virtual void	dump (::std::ostream &os=::std::cout) const
virtual void	trace (sc_trace_file *tf) const
sc_simcontext *	simcontext () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &name_)
const sc_attr_base *	get_attribute (const std::string &name_) const
sc_attr_base *	remove_attribute (const std::string &name_)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
virtual const std::vector< sc_event * > &	get_child_events () const
virtual const std::vector< sc_object * > &	get_child_objects () const
sc_object *	get_parent () const
sc_object *	get_parent_object () const

Protected Member Functions
	sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)
	sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)
virtual	~sc_port_base ()
void	bind (sc_interface &interface_)
void	bind (this_type &parent_)
virtual int	vbind (sc_interface &)=0
virtual int	vbind (sc_port_base &)=0
virtual void	before_end_of_elaboration ()
virtual void	end_of_elaboration ()
virtual void	start_of_simulation ()
virtual void	end_of_simulation ()
void	report_error (const char *id, const char *add_msg=0) const
virtual void	make_sensitive (sc_thread_handle, sc_event_finder *=0) const
virtual void	make_sensitive (sc_method_handle, sc_event_finder *=0) const
void	add_static_event (sc_method_handle process_p, const sc_event &event) const
void	add_static_event (sc_thread_handle process_p, const sc_event &event) const
virtual void	add_child_event (sc_event *event_p)
virtual void	add_child_object (sc_object *object_p)
virtual bool	remove_child_event (sc_event *event_p)
virtual bool	remove_child_object (sc_object *object_p)
phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)
phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_bind_info *	m_bind_info

Friends
class	sc_module
class	sc_port_registry
class	sc_sensitive
class	sc_sensitive_pos
class	sc_sensitive_neg

Detailed Description

Abstract base class for class sc_port_b.

Definition at line 81 of file sc_port.h.

Member Typedef Documentation

phase_cb_mask

typedef unsigned sc_core::sc_object::phase_cb_mask

inherited

Definition at line 75 of file sc_object.h.

this_type

typedef sc_port_base sc_core::sc_port_base::this_type

Definition at line 94 of file sc_port.h.

Constructor & Destructor Documentation

sc_port_base() [1/2]

sc_core::sc_port_base::sc_port_base ( int  max_size_, sc_port_policy  policy = SC_ONE_OR_MORE_BOUND  )

explicitprotected

sc_port_base() [2/2]

sc_core::sc_port_base::sc_port_base ( const char *  name_, int  max_size_, sc_port_policy  policy = SC_ONE_OR_MORE_BOUND  )

protected

~sc_port_base()

virtual sc_core::sc_port_base::~sc_port_base ( )

protectedvirtual

Member Function Documentation

add_attribute()

bool sc_core::sc_object::add_attribute ( sc_attr_base &  )

inherited

add_child_event()

virtual void sc_core::sc_object::add_child_event ( sc_event *  event_p )

protectedvirtualinherited

add_child_object()

virtual void sc_core::sc_object::add_child_object ( sc_object *  object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

add_static_event() [1/2]

void sc_core::sc_port_base::add_static_event ( sc_method_handle  process_p, const sc_event &  event  ) const

protected

add_static_event() [2/2]

void sc_core::sc_port_base::add_static_event ( sc_thread_handle  process_p, const sc_event &  event  ) const

protected

attr_cltn() [1/2]

sc_attr_cltn& sc_core::sc_object::attr_cltn ( )

inherited

attr_cltn() [2/2]

const sc_attr_cltn& sc_core::sc_object::attr_cltn ( ) const

inherited

basename()

const char* sc_core::sc_object::basename ( ) const

inherited

before_end_of_elaboration()

virtual void sc_core::sc_port_base::before_end_of_elaboration ( )

protectedvirtual

bind() [1/2]

void sc_core::sc_port_base::bind ( sc_interface &  interface_ )

protected

bind() [2/2]

void sc_core::sc_port_base::bind ( this_type &  parent_ )

protected

bind_count()

int sc_core::sc_port_base::bind_count

(

)

dump()

virtual void sc_core::sc_object::dump ( ::std::ostream &  os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

end_of_elaboration()

virtual void sc_core::sc_port_base::end_of_elaboration ( )

protectedvirtual

Reimplemented in sc_core::sc_inout< sc_dt::sc_logic >, sc_core::sc_inout< bool >, sc_core::sc_inout< T >, sc_core::sc_inout< sc_dt::sc_lv< W > >, sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_in< T >, sc_core::sc_in< sc_dt::sc_lv< W > >, sc_core::sc_inout_rv< W >, sc_core::sc_inout_resolved, sc_core::sc_in_rv< W >, and sc_core::sc_in_resolved.

end_of_simulation()

virtual void sc_core::sc_port_base::end_of_simulation ( )

protectedvirtual

get_attribute() [1/2]

sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_ )

inherited

get_attribute() [2/2]

const sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_ ) const

inherited

get_child_events()

virtual const std::vector<sc_event*>& sc_core::sc_object::get_child_events ( ) const

inlinevirtualinherited

Definition at line 114 of file sc_object.h.

get_child_objects()

virtual const std::vector<sc_object*>& sc_core::sc_object::get_child_objects ( ) const

inlinevirtualinherited

Reimplemented in sc_core::sc_process_b, and sc_core::sc_module.

Definition at line 117 of file sc_object.h.

get_interface() [1/2]

virtual sc_interface* sc_core::sc_port_base::get_interface ( )

pure virtual

Implemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

get_interface() [2/2]

virtual const sc_interface* sc_core::sc_port_base::get_interface ( ) const

pure virtual

Implemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

get_interface_type()

virtual sc_type_index sc_core::sc_port_base::get_interface_type ( ) const

pure virtual

Implemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

get_parent()

sc_object* sc_core::sc_object::get_parent ( ) const

inherited

get_parent_object()

sc_object* sc_core::sc_object::get_parent_object ( ) const

inlineinherited

Definition at line 121 of file sc_object.h.

kind()

virtual const char* sc_core::sc_port_base::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_out< T >, sc_core::sc_out< bool >, sc_core::sc_inout< sc_dt::sc_logic >, sc_core::sc_inout< bool >, sc_core::sc_inout< T >, sc_core::sc_inout< sc_dt::sc_lv< W > >, sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_port< IF, N, P >, sc_core::sc_port< sc_signal_inout_if< T >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< bool >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_fifo_out_if< T >, 0, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_inout_if< sc_dt::sc_logic >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_inout_if< bool >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< T >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< sc_dt::sc_logic >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_fifo_in_if< T >, 0, SC_ONE_OR_MORE_BOUND >, sc_core::sc_out_rv< W >, sc_core::sc_out_resolved, sc_core::sc_fifo_out< T >, sc_core::sc_in< T >, sc_core::sc_in< sc_dt::sc_lv< W > >, sc_core::sc_inout_rv< W >, sc_core::sc_inout_resolved, sc_core::sc_fifo_in< T >, sc_core::sc_in_rv< W >, and sc_core::sc_in_resolved.

Definition at line 104 of file sc_port.h.

make_sensitive() [1/2]

virtual void sc_core::sc_port_base::make_sensitive ( sc_thread_handle  , sc_event_finder *  = 0  ) const

protectedvirtual

Reimplemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

make_sensitive() [2/2]

virtual void sc_core::sc_port_base::make_sensitive ( sc_method_handle  , sc_event_finder *  = 0  ) const

protectedvirtual

Reimplemented in sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, and sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >.

name()

const char* sc_core::sc_object::name ( ) const

inlineinherited

Definition at line 77 of file sc_object.h.

num_attributes()

int sc_core::sc_object::num_attributes ( ) const

inherited

print()

virtual void sc_core::sc_object::print ( ::std::ostream &  os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

register_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::register_simulation_phase_callback ( phase_cb_mask  )

protectedinherited

remove_all_attributes()

void sc_core::sc_object::remove_all_attributes ( )

inherited

remove_attribute()

sc_attr_base* sc_core::sc_object::remove_attribute ( const std::string &  name_ )

inherited

remove_child_event()

virtual bool sc_core::sc_object::remove_child_event ( sc_event *  event_p )

protectedvirtualinherited

remove_child_object()

virtual bool sc_core::sc_object::remove_child_object ( sc_object *  object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

report_error()

void sc_core::sc_port_base::report_error ( const char *  id, const char *  add_msg = 0  ) const

protected

simcontext()

sc_simcontext* sc_core::sc_object::simcontext ( ) const

inlineinherited

Definition at line 91 of file sc_object.h.

start_of_simulation()

virtual void sc_core::sc_port_base::start_of_simulation ( )

protectedvirtual

trace()

virtual void sc_core::sc_object::trace ( sc_trace_file *  tf ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

unregister_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::unregister_simulation_phase_callback ( phase_cb_mask  )

protectedinherited

vbind() [1/2]

virtual int sc_core::sc_port_base::vbind ( sc_interface &  )

protectedpure virtual

Implemented in sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >, sc_core::sc_in< T >, and sc_core::sc_in< sc_dt::sc_lv< W > >.

vbind() [2/2]

virtual int sc_core::sc_port_base::vbind ( sc_port_base &  )

protectedpure virtual

Implemented in sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_port_b< IF >, sc_core::sc_port_b< sc_signal_inout_if< T > >, sc_core::sc_port_b< sc_signal_inout_if< bool > >, sc_core::sc_port_b< sc_fifo_out_if< T > >, sc_core::sc_port_b< sc_fifo_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< T > >, sc_core::sc_port_b< sc_signal_in_if< bool > >, sc_core::sc_port_b< sc_signal_inout_if< sc_dt::sc_logic > >, sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >, sc_core::sc_in< T >, and sc_core::sc_in< sc_dt::sc_lv< W > >.

Friends And Related Function Documentation

sc_module

friend class sc_module

friend

Definition at line 84 of file sc_port.h.

sc_port_registry

friend class sc_port_registry

friend

Definition at line 85 of file sc_port.h.

sc_sensitive

friend class sc_sensitive

friend

Definition at line 86 of file sc_port.h.

sc_sensitive_neg

friend class sc_sensitive_neg

friend

Definition at line 88 of file sc_port.h.

sc_sensitive_pos

friend class sc_sensitive_pos

friend

Definition at line 87 of file sc_port.h.

Member Data Documentation

m_bind_info

sc_bind_info* sc_core::sc_port_base::m_bind_info

protected

Definition at line 190 of file sc_port.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_port.h
