sc_core::sc_object Class Reference

Abstract base class of all SystemC `simulation' objects. More...

#include <sysc/kernel/sc_object.h>

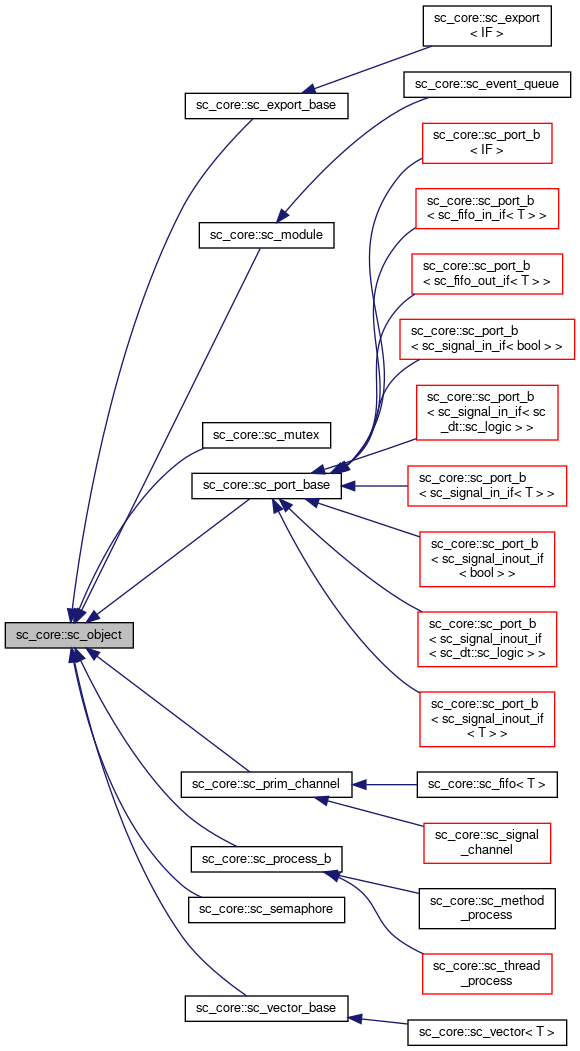

Inheritance diagram for sc_core::sc_object:
Inheritance graph
[legend]

Classes

class  hierarchy_scope


Public Types

typedef unsigned phase_cb_mask


Public Member Functions

const char * name () const

const char * basename () const

virtual void print (::std::ostream &os=::std::cout) const

virtual void dump (::std::ostream &os=::std::cout) const

virtual void trace (sc_trace_file *tf) const

virtual const char * kind () const

sc_simcontext * simcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_base * get_attribute (const std::string &name_)

const sc_attr_base * get_attribute (const std::string &name_) const

sc_attr_base * remove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltn & attr_cltn ()

const sc_attr_cltn & attr_cltn () const

virtual const std::vector< sc_event * > & get_child_events () const

virtual const std::vector< sc_object * > & get_child_objects () const

sc_object * get_parent () const

sc_object * get_parent_object () const


Protected Member Functions

 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_object & operator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)


Friends

class sc_event

class sc_module

struct sc_invoke_method

class sc_module_dynalloc_list

class sc_object_manager

class sc_phase_callback_registry

class sc_process_b

class sc_runnable

class sc_simcontext

class sc_trace_file_base


Detailed Description

Abstract base class of all SystemC `simulation' objects.

Definition at line 61 of file sc_object.h.

Member Typedef Documentation

◆ phase_cb_mask

typedef unsigned sc_core::sc_object::phase_cb_mask

Definition at line 75 of file sc_object.h.

Constructor & Destructor Documentation

◆ sc_object() [1/3]

sc_core::sc_object::sc_object ( )
protected

◆ sc_object() [2/3]

sc_core::sc_object::sc_object ( const char *  nm)
protected

◆ sc_object() [3/3]

sc_core::sc_object::sc_object ( const sc_object &  )
protected

◆ ~sc_object()

virtual sc_core::sc_object::~sc_object ( )
protectedvirtual

Member Function Documentation

◆ add_attribute()

bool sc_core::sc_object::add_attribute ( sc_attr_base &  )

◆ add_child_event()

virtual void sc_core::sc_object::add_child_event ( sc_event *  event_p)
protectedvirtual

◆ add_child_object()

virtual void sc_core::sc_object::add_child_object ( sc_object *  object_p)
protectedvirtual

Reimplemented in sc_core::sc_process_b.

◆ attr_cltn() [1/2]

sc_attr_cltn& sc_core::sc_object::attr_cltn ( )

◆ attr_cltn() [2/2]

const sc_attr_cltn& sc_core::sc_object::attr_cltn ( ) const

◆ basename()

const char* sc_core::sc_object::basename ( ) const

◆ dump()

virtual void sc_core::sc_object::dump ( ::std::ostream &  os = ::std::cout) const
virtual

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ get_attribute() [1/2]

sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_)

◆ get_attribute() [2/2]

const sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_) const

◆ get_child_events()

virtual const std::vector<sc_event*>& sc_core::sc_object::get_child_events ( ) const
inlinevirtual

Definition at line 114 of file sc_object.h.

◆ get_child_objects()

virtual const std::vector<sc_object*>& sc_core::sc_object::get_child_objects ( ) const
inlinevirtual

Reimplemented in sc_core::sc_process_b, and sc_core::sc_module.

Definition at line 117 of file sc_object.h.

◆ get_parent()

sc_object* sc_core::sc_object::get_parent ( ) const

◆ get_parent_object()

sc_object* sc_core::sc_object::get_parent_object ( ) const
inline

Definition at line 121 of file sc_object.h.

◆ kind()

virtual const char* sc_core::sc_object::kind ( ) const
inlinevirtual

Reimplemented in sc_core::sc_out< T >, sc_core::sc_out< bool >, sc_core::sc_inout< sc_dt::sc_logic >, sc_core::sc_inout< bool >, sc_core::sc_inout< T >, sc_core::sc_inout< sc_dt::sc_lv< W > >, sc_core::sc_in< sc_dt::sc_logic >, sc_core::sc_in< bool >, sc_core::sc_port< IF, N, P >, sc_core::sc_port< sc_signal_inout_if< T >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< bool >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_fifo_out_if< T >, 0, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_inout_if< sc_dt::sc_logic >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_inout_if< bool >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< T >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_signal_in_if< sc_dt::sc_logic >, 1, SC_ONE_OR_MORE_BOUND >, sc_core::sc_port< sc_fifo_in_if< T >, 0, SC_ONE_OR_MORE_BOUND >, sc_core::sc_out_rv< W >, sc_core::sc_out_resolved, sc_core::sc_fifo_out< T >, sc_core::sc_in< T >, sc_core::sc_in< sc_dt::sc_lv< W > >, sc_core::sc_inout_rv< W >, sc_core::sc_inout_resolved, sc_core::sc_export< IF >, sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_vector_base, sc_core::sc_fifo_in< T >, sc_core::sc_fifo< T >, sc_core::sc_signal_rv< W >, sc_core::sc_method_process, sc_core::sc_in_rv< W >, sc_core::sc_thread_process, sc_core::sc_in_resolved, sc_core::sc_clock, sc_core::sc_port_base, sc_core::sc_signal_channel, sc_core::sc_module, sc_core::sc_signal_resolved, sc_core::sc_event_queue, sc_core::sc_buffer< T, POL >, sc_core::sc_semaphore, sc_core::sc_mutex, sc_core::sc_cthread_process, and sc_core::sc_prim_channel.

Definition at line 89 of file sc_object.h.

◆ name()

const char* sc_core::sc_object::name ( ) const
inline

Definition at line 77 of file sc_object.h.

◆ num_attributes()

int sc_core::sc_object::num_attributes ( ) const

◆ operator=()

sc_object & sc_core::sc_object::operator= ( const sc_object &  )
inlineprotected

Definition at line 166 of file sc_object.h.

◆ print()

virtual void sc_core::sc_object::print ( ::std::ostream &  os = ::std::cout) const
virtual

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ register_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::register_simulation_phase_callback ( phase_cb_mask  )
protected

◆ remove_all_attributes()

void sc_core::sc_object::remove_all_attributes ( )

◆ remove_attribute()

sc_attr_base* sc_core::sc_object::remove_attribute ( const std::string &  name_)

◆ remove_child_event()

virtual bool sc_core::sc_object::remove_child_event ( sc_event *  event_p)
protectedvirtual

◆ remove_child_object()

virtual bool sc_core::sc_object::remove_child_object ( sc_object *  object_p)
protectedvirtual

Reimplemented in sc_core::sc_process_b.

◆ simcontext()

sc_simcontext* sc_core::sc_object::simcontext ( ) const
inline

Definition at line 91 of file sc_object.h.

◆ trace()

virtual void sc_core::sc_object::trace ( sc_trace_file *  tf) const
virtual

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ unregister_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::unregister_simulation_phase_callback ( phase_cb_mask  )
protected

Friends And Related Function Documentation

◆ sc_event

friend class sc_event
friend

Definition at line 63 of file sc_object.h.

◆ sc_invoke_method

friend struct sc_invoke_method
friend

Definition at line 65 of file sc_object.h.

◆ sc_module

friend class sc_module
friend

Definition at line 64 of file sc_object.h.

◆ sc_module_dynalloc_list

friend class sc_module_dynalloc_list
friend

Definition at line 66 of file sc_object.h.

◆ sc_object_manager

friend class sc_object_manager
friend

Definition at line 67 of file sc_object.h.

◆ sc_phase_callback_registry

friend class sc_phase_callback_registry
friend

Definition at line 68 of file sc_object.h.

◆ sc_process_b

friend class sc_process_b
friend

Definition at line 69 of file sc_object.h.

◆ sc_runnable

friend class sc_runnable
friend

Definition at line 70 of file sc_object.h.

◆ sc_simcontext

friend class sc_simcontext
friend

Definition at line 71 of file sc_object.h.

◆ sc_trace_file_base

friend class sc_trace_file_base
friend

Definition at line 72 of file sc_object.h.

The documentation for this class was generated from the following files:
