The sc_mutex primitive channel class. More...

#include <sysc/communication/sc_mutex.h>

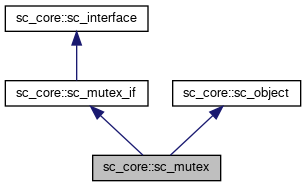

Inheritance diagram for sc_core::sc_mutex:

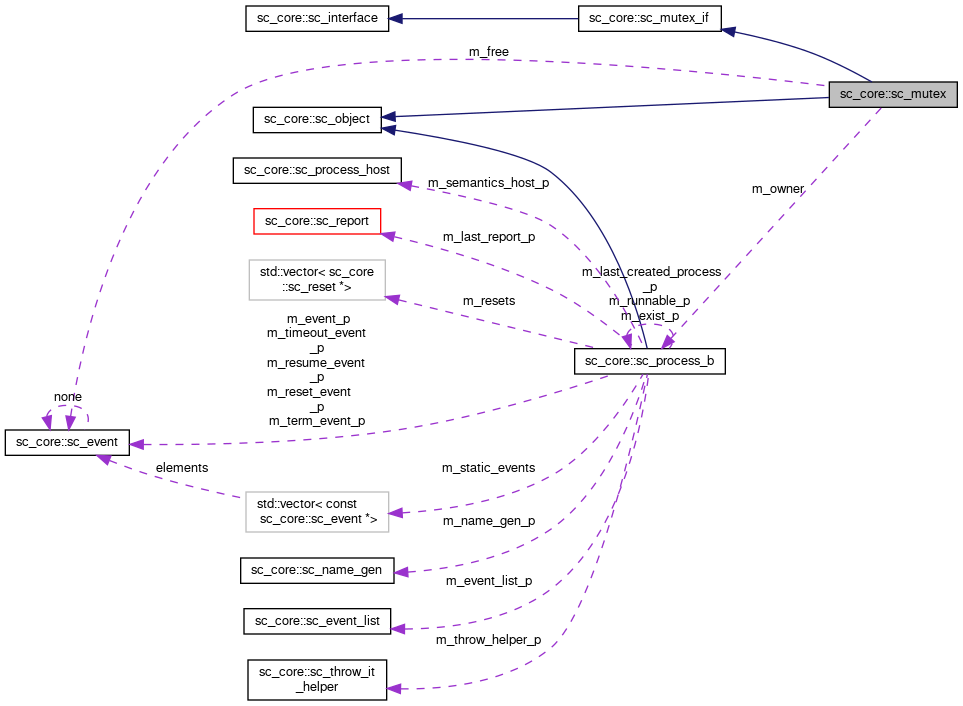

Collaboration diagram for sc_core::sc_mutex:

[legend]

Public Types
typedef unsigned	phase_cb_mask

Public Member Functions
	sc_mutex ()

	sc_mutex (const char *name_)

virtual	~sc_mutex ()

virtual int	lock ()

virtual int	trylock ()

virtual int	unlock ()

virtual const char *	kind () const

virtual void	register_port (sc_port_base &port_, const char *if_typename_)

virtual const sc_event &	default_event () const

const char *	name () const

const char *	basename () const

virtual void	print (::std::ostream &os=::std::cout) const

virtual void	dump (::std::ostream &os=::std::cout) const

virtual void	trace (sc_trace_file *tf) const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector< sc_event * > &	get_child_events () const

virtual const std::vector< sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Protected Member Functions
bool	in_use () const

virtual void	add_child_event (sc_event *event_p)

virtual void	add_child_object (sc_object *object_p)

virtual bool	remove_child_event (sc_event *event_p)

virtual bool	remove_child_object (sc_object *object_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_process_b *	m_owner

sc_event	m_free

Detailed Description

The sc_mutex primitive channel class.

Definition at line 49 of file sc_mutex.h.

Member Typedef Documentation

◆ phase_cb_mask

typedef unsigned sc_core::sc_object::phase_cb_mask

inherited

Definition at line 75 of file sc_object.h.

Constructor & Destructor Documentation

◆ sc_mutex() [1/2]

sc_core::sc_mutex::sc_mutex ( )

◆ sc_mutex() [2/2]

sc_core::sc_mutex::sc_mutex ( const char * name_ )

explicit

◆ ~sc_mutex()

virtual sc_core::sc_mutex::~sc_mutex ( )

virtual

Member Function Documentation

◆ add_attribute()

bool sc_core::sc_object::add_attribute ( sc_attr_base & )

inherited

◆ add_child_event()

virtual void sc_core::sc_object::add_child_event ( sc_event * event_p )

protectedvirtualinherited

◆ add_child_object()

virtual void sc_core::sc_object::add_child_object ( sc_object * object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

◆ attr_cltn() [1/2]

sc_attr_cltn& sc_core::sc_object::attr_cltn ( )

inherited

◆ attr_cltn() [2/2]

const sc_attr_cltn& sc_core::sc_object::attr_cltn ( ) const

inherited

◆ basename()

const char* sc_core::sc_object::basename ( ) const

inherited

◆ default_event()

virtual const sc_event& sc_core::sc_interface::default_event ( ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_event_queue.

◆ dump()

virtual void sc_core::sc_object::dump ( ::std::ostream & os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ get_attribute() [1/2]

sc_attr_base* sc_core::sc_object::get_attribute ( const std::string & name_ )

inherited

◆ get_attribute() [2/2]

const sc_attr_base* sc_core::sc_object::get_attribute ( const std::string & name_ ) const

inherited

◆ get_child_events()

virtual const std::vector<sc_event*>& sc_core::sc_object::get_child_events ( ) const

inlinevirtualinherited

Definition at line 114 of file sc_object.h.

◆ get_child_objects()

virtual const std::vector<sc_object*>& sc_core::sc_object::get_child_objects ( ) const

inlinevirtualinherited

Reimplemented in sc_core::sc_process_b, and sc_core::sc_module.

Definition at line 117 of file sc_object.h.

◆ get_parent()

sc_object* sc_core::sc_object::get_parent ( ) const

inherited

◆ get_parent_object()

sc_object* sc_core::sc_object::get_parent_object ( ) const

inlineinherited

Definition at line 121 of file sc_object.h.

◆ in_use()

bool sc_core::sc_mutex::in_use ( ) const

inlineprotected

Definition at line 80 of file sc_mutex.h.

◆ kind()

virtual const char* sc_core::sc_mutex::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 73 of file sc_mutex.h.

◆ lock()

virtual int sc_core::sc_mutex::lock ( )

virtual

Implements sc_core::sc_mutex_if.

◆ name()

const char* sc_core::sc_object::name ( ) const

inlineinherited

Definition at line 77 of file sc_object.h.

◆ num_attributes()

int sc_core::sc_object::num_attributes ( ) const

inherited

◆ print()

virtual void sc_core::sc_object::print ( ::std::ostream & os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ register_port()

virtual void sc_core::sc_interface::register_port	(	sc_port_base &	port_,
		const char *	if_typename_
	)

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_fifo< T >.

◆ register_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::register_simulation_phase_callback ( phase_cb_mask )

protectedinherited

◆ remove_all_attributes()

void sc_core::sc_object::remove_all_attributes ( )

inherited

◆ remove_attribute()

sc_attr_base* sc_core::sc_object::remove_attribute ( const std::string & name_ )

inherited

◆ remove_child_event()

virtual bool sc_core::sc_object::remove_child_event ( sc_event * event_p )

protectedvirtualinherited

◆ remove_child_object()

virtual bool sc_core::sc_object::remove_child_object ( sc_object * object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

◆ simcontext()

sc_simcontext* sc_core::sc_object::simcontext ( ) const

inlineinherited

Definition at line 91 of file sc_object.h.

◆ trace()

virtual void sc_core::sc_object::trace ( sc_trace_file * tf ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

◆ trylock()

virtual int sc_core::sc_mutex::trylock ( )

virtual

Implements sc_core::sc_mutex_if.

◆ unlock()

virtual int sc_core::sc_mutex::unlock ( )

virtual

Implements sc_core::sc_mutex_if.

◆ unregister_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::unregister_simulation_phase_callback ( phase_cb_mask )

protectedinherited

Member Data Documentation

◆ m_free

sc_event sc_core::sc_mutex::m_free

protected

Definition at line 86 of file sc_mutex.h.

◆ m_owner

sc_process_b* sc_core::sc_mutex::m_owner

protected

Definition at line 85 of file sc_mutex.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_mutex.h
