sc_core::sc_mutex_if Class Reference

The sc_mutex_if interface class. More...

#include <sysc/communication/sc_mutex_if.h>

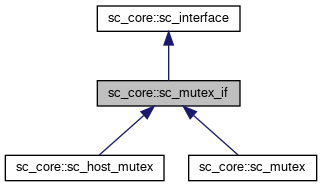

Inheritance diagram for sc_core::sc_mutex_if:

Collaboration diagram for sc_core::sc_mutex_if:

Public Member Functions
virtual int	lock ()=0
virtual int	trylock ()=0
virtual int	unlock ()=0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const

Protected Member Functions
	sc_mutex_if ()

Detailed Description

The sc_mutex_if interface class.

Definition at line 46 of file sc_mutex_if.h.

Constructor & Destructor Documentation

sc_mutex_if()

sc_core::sc_mutex_if::sc_mutex_if ( )

inlineprotected

Definition at line 66 of file sc_mutex_if.h.

Member Function Documentation

default_event()

virtual const sc_event& sc_core::sc_interface::default_event ( ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_event_queue.

lock()

virtual int sc_core::sc_mutex_if::lock ( )

pure virtual

Implemented in sc_core::sc_host_mutex, and sc_core::sc_mutex.

register_port()

virtual void sc_core::sc_interface::register_port ( sc_port_base &  port_, const char *  if_typename_  )

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_fifo< T >.

trylock()

virtual int sc_core::sc_mutex_if::trylock ( )

pure virtual

Implemented in sc_core::sc_host_mutex, and sc_core::sc_mutex.

unlock()

virtual int sc_core::sc_mutex_if::unlock ( )

pure virtual

Implemented in sc_core::sc_host_mutex, and sc_core::sc_mutex.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_mutex_if.h
