sc_core::sc_prim_channel Class Reference

Abstract base class of all primitive channel classes. More...

#include <sysc/communication/sc_prim_channel.h>

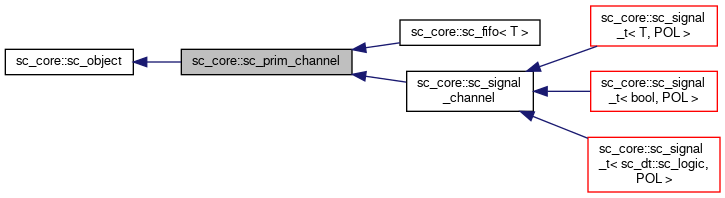

Inheritance diagram for sc_core::sc_prim_channel:

Collaboration diagram for sc_core::sc_prim_channel:

Public Types
enum	{ list_end = 0xdb }
typedef unsigned	phase_cb_mask

Public Member Functions
virtual const char *	kind () const
bool	update_requested ()
void	request_update ()
void	async_request_update ()
const char *	name () const
const char *	basename () const
virtual void	print (::std::ostream &os=::std::cout) const
virtual void	dump (::std::ostream &os=::std::cout) const
virtual void	trace (sc_trace_file *tf) const
sc_simcontext *	simcontext () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &name_)
const sc_attr_base *	get_attribute (const std::string &name_) const
sc_attr_base *	remove_attribute (const std::string &name_)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
virtual const std::vector< sc_event * > &	get_child_events () const
virtual const std::vector< sc_object * > &	get_child_objects () const
sc_object *	get_parent () const
sc_object *	get_parent_object () const

Protected Member Functions
	sc_prim_channel ()
	sc_prim_channel (const char *)
virtual	~sc_prim_channel ()
virtual void	update ()
virtual void	before_end_of_elaboration ()
virtual void	end_of_elaboration ()
virtual void	start_of_simulation ()
virtual void	end_of_simulation ()
bool	async_attach_suspending ()
bool	async_detach_suspending ()
void	wait ()
void	wait (const sc_event &e)
void	wait (const sc_event_or_list &el)
void	wait (const sc_event_and_list &el)
void	wait (const sc_time &t)
void	wait (double v, sc_time_unit tu)
void	wait (const sc_time &t, const sc_event &e)
void	wait (double v, sc_time_unit tu, const sc_event &e)
void	wait (const sc_time &t, const sc_event_or_list &el)
void	wait (double v, sc_time_unit tu, const sc_event_or_list &el)
void	wait (const sc_time &t, const sc_event_and_list &el)
void	wait (double v, sc_time_unit tu, const sc_event_and_list &el)
void	wait (int n)
void	next_trigger ()
void	next_trigger (const sc_event &e)
void	next_trigger (const sc_event_or_list &el)
void	next_trigger (const sc_event_and_list &el)
void	next_trigger (const sc_time &t)
void	next_trigger (double v, sc_time_unit tu)
void	next_trigger (const sc_time &t, const sc_event &e)
void	next_trigger (double v, sc_time_unit tu, const sc_event &e)
void	next_trigger (const sc_time &t, const sc_event_or_list &el)
void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
void	next_trigger (const sc_time &t, const sc_event_and_list &el)
void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
bool	timed_out ()
virtual void	add_child_event (sc_event *event_p)
virtual void	add_child_object (sc_object *object_p)
virtual bool	remove_child_event (sc_event *event_p)
virtual bool	remove_child_object (sc_object *object_p)
phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)
phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Friends
class	sc_prim_channel_registry

Detailed Description

Abstract base class of all primitive channel classes.

Definition at line 48 of file sc_prim_channel.h.

Member Typedef Documentation

phase_cb_mask

typedef unsigned sc_core::sc_object::phase_cb_mask

inherited

Definition at line 75 of file sc_object.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
list_end

Definition at line 54 of file sc_prim_channel.h.

Constructor & Destructor Documentation

sc_prim_channel() [1/2]

sc_core::sc_prim_channel::sc_prim_channel ( )

protected

sc_prim_channel() [2/2]

sc_core::sc_prim_channel::sc_prim_channel ( const char *  )

explicitprotected

~sc_prim_channel()

virtual sc_core::sc_prim_channel::~sc_prim_channel ( )

protectedvirtual

Member Function Documentation

add_attribute()

bool sc_core::sc_object::add_attribute ( sc_attr_base &  )

inherited

add_child_event()

virtual void sc_core::sc_object::add_child_event ( sc_event *  event_p )

protectedvirtualinherited

add_child_object()

virtual void sc_core::sc_object::add_child_object ( sc_object *  object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

async_attach_suspending()

bool sc_core::sc_prim_channel::async_attach_suspending ( )

inlineprotected

Definition at line 363 of file sc_prim_channel.h.

async_detach_suspending()

bool sc_core::sc_prim_channel::async_detach_suspending ( )

inlineprotected

Definition at line 370 of file sc_prim_channel.h.

async_request_update()

void sc_core::sc_prim_channel::async_request_update ( )

inline

Definition at line 356 of file sc_prim_channel.h.

attr_cltn() [1/2]

sc_attr_cltn& sc_core::sc_object::attr_cltn ( )

inherited

attr_cltn() [2/2]

const sc_attr_cltn& sc_core::sc_object::attr_cltn ( ) const

inherited

basename()

const char* sc_core::sc_object::basename ( ) const

inherited

before_end_of_elaboration()

virtual void sc_core::sc_prim_channel::before_end_of_elaboration ( )

protectedvirtual

Reimplemented in sc_core::sc_clock.

dump()

virtual void sc_core::sc_object::dump ( ::std::ostream &  os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

end_of_elaboration()

virtual void sc_core::sc_prim_channel::end_of_elaboration ( )

protectedvirtual

end_of_simulation()

virtual void sc_core::sc_prim_channel::end_of_simulation ( )

protectedvirtual

get_attribute() [1/2]

sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_ )

inherited

get_attribute() [2/2]

const sc_attr_base* sc_core::sc_object::get_attribute ( const std::string &  name_ ) const

inherited

get_child_events()

virtual const std::vector<sc_event*>& sc_core::sc_object::get_child_events ( ) const

inlinevirtualinherited

Definition at line 114 of file sc_object.h.

get_child_objects()

virtual const std::vector<sc_object*>& sc_core::sc_object::get_child_objects ( ) const

inlinevirtualinherited

Reimplemented in sc_core::sc_process_b, and sc_core::sc_module.

Definition at line 117 of file sc_object.h.

get_parent()

sc_object* sc_core::sc_object::get_parent ( ) const

inherited

get_parent_object()

sc_object* sc_core::sc_object::get_parent_object ( ) const

inlineinherited

Definition at line 121 of file sc_object.h.

kind()

virtual const char* sc_core::sc_prim_channel::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_fifo< T >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_channel, sc_core::sc_signal_resolved, and sc_core::sc_buffer< T, POL >.

Definition at line 56 of file sc_prim_channel.h.

name()

const char* sc_core::sc_object::name ( ) const

inlineinherited

Definition at line 77 of file sc_object.h.

next_trigger() [1/12]

void sc_core::sc_prim_channel::next_trigger ( )

inlineprotected

Definition at line 150 of file sc_prim_channel.h.

next_trigger() [2/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event &  e )

inlineprotected

Definition at line 156 of file sc_prim_channel.h.

next_trigger() [3/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event_or_list &  el )

inlineprotected

Definition at line 159 of file sc_prim_channel.h.

next_trigger() [4/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_event_and_list &  el )

inlineprotected

Definition at line 162 of file sc_prim_channel.h.

next_trigger() [5/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_time &  t )

inlineprotected

Definition at line 165 of file sc_prim_channel.h.

next_trigger() [6/12]

void sc_core::sc_prim_channel::next_trigger ( double  v, sc_time_unit  tu  )

inlineprotected

Definition at line 168 of file sc_prim_channel.h.

next_trigger() [7/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_time &  t, const sc_event &  e  )

inlineprotected

Definition at line 171 of file sc_prim_channel.h.

next_trigger() [8/12]

void sc_core::sc_prim_channel::next_trigger ( double  v, sc_time_unit  tu, const sc_event &  e  )

inlineprotected

Definition at line 174 of file sc_prim_channel.h.

next_trigger() [9/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_time &  t, const sc_event_or_list &  el  )

inlineprotected

Definition at line 178 of file sc_prim_channel.h.

next_trigger() [10/12]

void sc_core::sc_prim_channel::next_trigger ( double  v, sc_time_unit  tu, const sc_event_or_list &  el  )

inlineprotected

Definition at line 181 of file sc_prim_channel.h.

next_trigger() [11/12]

void sc_core::sc_prim_channel::next_trigger ( const sc_time &  t, const sc_event_and_list &  el  )

inlineprotected

Definition at line 185 of file sc_prim_channel.h.

next_trigger() [12/12]

void sc_core::sc_prim_channel::next_trigger ( double  v, sc_time_unit  tu, const sc_event_and_list &  el  )

inlineprotected

Definition at line 188 of file sc_prim_channel.h.

num_attributes()

int sc_core::sc_object::num_attributes ( ) const

inherited

print()

virtual void sc_core::sc_object::print ( ::std::ostream &  os = ::std::cout ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

register_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::register_simulation_phase_callback ( phase_cb_mask  )

protectedinherited

remove_all_attributes()

void sc_core::sc_object::remove_all_attributes ( )

inherited

remove_attribute()

sc_attr_base* sc_core::sc_object::remove_attribute ( const std::string &  name_ )

inherited

remove_child_event()

virtual bool sc_core::sc_object::remove_child_event ( sc_event *  event_p )

protectedvirtualinherited

remove_child_object()

virtual bool sc_core::sc_object::remove_child_object ( sc_object *  object_p )

protectedvirtualinherited

Reimplemented in sc_core::sc_process_b.

request_update()

void sc_core::sc_prim_channel::request_update ( )

inline

Definition at line 344 of file sc_prim_channel.h.

simcontext()

sc_simcontext* sc_core::sc_object::simcontext ( ) const

inlineinherited

Definition at line 91 of file sc_object.h.

start_of_simulation()

virtual void sc_core::sc_prim_channel::start_of_simulation ( )

protectedvirtual

timed_out()

bool sc_core::sc_prim_channel::timed_out ( )

inlineprotected

Definition at line 195 of file sc_prim_channel.h.

trace()

virtual void sc_core::sc_object::trace ( sc_trace_file *  tf ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_fifo< T >.

unregister_simulation_phase_callback()

phase_cb_mask sc_core::sc_object::unregister_simulation_phase_callback ( phase_cb_mask  )

protectedinherited

update()

virtual void sc_core::sc_prim_channel::update ( )

protectedvirtual

Reimplemented in sc_core::sc_signal< sc_dt::sc_logic, POL >, sc_core::sc_signal< bool, POL >, sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_fifo< T >, sc_core::sc_signal_resolved, and sc_core::sc_buffer< T, POL >.

update_requested()

bool sc_core::sc_prim_channel::update_requested ( )

inline

Definition at line 59 of file sc_prim_channel.h.

wait() [1/13]

void sc_core::sc_prim_channel::wait ( )

inlineprotected

Definition at line 105 of file sc_prim_channel.h.

wait() [2/13]

void sc_core::sc_prim_channel::wait ( const sc_event &  e )

inlineprotected

Definition at line 111 of file sc_prim_channel.h.

wait() [3/13]

void sc_core::sc_prim_channel::wait ( const sc_event_or_list &  el )

inlineprotected

Definition at line 114 of file sc_prim_channel.h.

wait() [4/13]

void sc_core::sc_prim_channel::wait ( const sc_event_and_list &  el )

inlineprotected

Definition at line 117 of file sc_prim_channel.h.

wait() [5/13]

void sc_core::sc_prim_channel::wait ( const sc_time &  t )

inlineprotected

Definition at line 120 of file sc_prim_channel.h.

wait() [6/13]

void sc_core::sc_prim_channel::wait ( double  v, sc_time_unit  tu  )

inlineprotected

Definition at line 123 of file sc_prim_channel.h.

wait() [7/13]

void sc_core::sc_prim_channel::wait ( const sc_time &  t, const sc_event &  e  )

inlineprotected

Definition at line 126 of file sc_prim_channel.h.

wait() [8/13]

void sc_core::sc_prim_channel::wait ( double  v, sc_time_unit  tu, const sc_event &  e  )

inlineprotected

Definition at line 129 of file sc_prim_channel.h.

wait() [9/13]

void sc_core::sc_prim_channel::wait ( const sc_time &  t, const sc_event_or_list &  el  )

inlineprotected

Definition at line 132 of file sc_prim_channel.h.

wait() [10/13]

void sc_core::sc_prim_channel::wait ( double  v, sc_time_unit  tu, const sc_event_or_list &  el  )

inlineprotected

Definition at line 135 of file sc_prim_channel.h.

wait() [11/13]

void sc_core::sc_prim_channel::wait ( const sc_time &  t, const sc_event_and_list &  el  )

inlineprotected

Definition at line 138 of file sc_prim_channel.h.

wait() [12/13]

void sc_core::sc_prim_channel::wait ( double  v, sc_time_unit  tu, const sc_event_and_list &  el  )

inlineprotected

Definition at line 141 of file sc_prim_channel.h.

wait() [13/13]

void sc_core::sc_prim_channel::wait ( int  n )

inlineprotected

Definition at line 144 of file sc_prim_channel.h.

Friends And Related Function Documentation

sc_prim_channel_registry

friend class sc_prim_channel_registry

friend

Definition at line 51 of file sc_prim_channel.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_prim_channel.h
