Proxy class for sc_signed bit selection (r-value and l-value). More...

#include <sysc/datatypes/int/sc_signed.h>

Inheritance diagram for sc_dt::sc_signed_bitref:

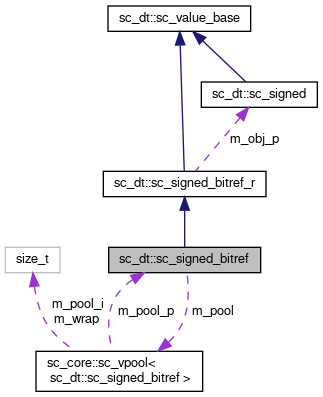

Collaboration diagram for sc_dt::sc_signed_bitref:

[legend]

Public Member Functions
	sc_signed_bitref (const sc_signed_bitref &a)

const sc_signed_bitref &	operator= (const sc_signed_bitref_r &)

const sc_signed_bitref &	operator= (const sc_signed_bitref &)

const sc_signed_bitref &	operator= (bool)

const sc_signed_bitref &	operator&= (bool)

const sc_signed_bitref &	operator\|= (bool)

const sc_signed_bitref &	operator^= (bool)

virtual void	concat_set (int64 src, int low_i)

virtual void	concat_set (const sc_signed &src, int low_i)

virtual void	concat_set (const sc_unsigned &src, int low_i)

virtual void	concat_set (uint64 src, int low_i)

void	scan (::std::istream &is=::std::cin)

int	length () const

	operator uint64 () const

bool	operator! () const

bool	operator~ () const

bool	value () const

bool	to_bool () const

virtual int	concat_length (bool *xz_present_p) const

virtual uint64	concat_get_uint64 () const

virtual bool	concat_get_ctrl (sc_digit *dst_p, int low_i) const

virtual bool	concat_get_data (sc_digit *dst_p, int low_i) const

void	print (::std::ostream &os=::std::cout) const

Protected Member Functions
	sc_signed_bitref ()

void	initialize (const sc_signed *obj_p, int index_)

Protected Attributes
int	m_index

sc_signed *	m_obj_p

Static Protected Attributes
static sc_core::sc_vpool< sc_signed_bitref >	m_pool

Friends
class	sc_signed

class	sc_core::sc_vpool< sc_signed_bitref >

Detailed Description

Proxy class for sc_signed bit selection (r-value and l-value).

Definition at line 844 of file sc_signed.h.

Constructor & Destructor Documentation

◆ sc_signed_bitref() [1/2]

sc_dt::sc_signed_bitref::sc_signed_bitref ( )

inlineprotected

Definition at line 855 of file sc_signed.h.

◆ sc_signed_bitref() [2/2]

sc_dt::sc_signed_bitref::sc_signed_bitref ( const sc_signed_bitref & a )

inline

Definition at line 862 of file sc_signed.h.

Member Function Documentation

◆ concat_get_ctrl()

virtual bool sc_dt::sc_signed_bitref_r::concat_get_ctrl	(	sc_digit *	dst_p,
		int	low_i
	)		const

inlinevirtualinherited

Reimplemented from sc_dt::sc_value_base.

Definition at line 789 of file sc_signed.h.

◆ concat_get_data()

virtual bool sc_dt::sc_signed_bitref_r::concat_get_data	(	sc_digit *	dst_p,
		int	low_i
	)		const

inlinevirtualinherited

Reimplemented from sc_dt::sc_value_base.

Definition at line 796 of file sc_signed.h.

◆ concat_get_uint64()

virtual uint64 sc_dt::sc_signed_bitref_r::concat_get_uint64 ( ) const

inlinevirtualinherited

Reimplemented from sc_dt::sc_value_base.

Definition at line 787 of file sc_signed.h.

◆ concat_length()

virtual int sc_dt::sc_signed_bitref_r::concat_length ( bool * xz_present_p ) const

inlinevirtualinherited

Reimplemented from sc_dt::sc_value_base.

Definition at line 785 of file sc_signed.h.

◆ concat_set() [1/4]

virtual void sc_dt::sc_signed_bitref::concat_set	(	int64	src,
		int	low_i
	)

virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [2/4]

virtual void sc_dt::sc_signed_bitref::concat_set	(	const sc_signed &	src,
		int	low_i
	)

virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [3/4]

virtual void sc_dt::sc_signed_bitref::concat_set	(	const sc_unsigned &	src,
		int	low_i
	)

virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [4/4]

virtual void sc_dt::sc_signed_bitref::concat_set	(	uint64	src,
		int	low_i
	)

virtual

Reimplemented from sc_dt::sc_value_base.

◆ initialize()

void sc_dt::sc_signed_bitref_r::initialize	(	const sc_signed *	obj_p,
		int	index_
	)

inlineprotectedinherited

Definition at line 743 of file sc_signed.h.

◆ length()

int sc_dt::sc_signed_bitref_r::length ( ) const

inlineinherited

Definition at line 764 of file sc_signed.h.

◆ operator uint64()

sc_dt::sc_signed_bitref_r::operator uint64 ( ) const

inherited

◆ operator!()

bool sc_dt::sc_signed_bitref_r::operator! ( ) const

inherited

◆ operator&=()

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator &= ( bool )

◆ operator=() [1/3]

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator= ( const sc_signed_bitref_r & )

◆ operator=() [2/3]

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator= ( const sc_signed_bitref & )

◆ operator=() [3/3]

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator= ( bool )

◆ operator^=()

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator^= ( bool )

◆ operator|=()

const sc_signed_bitref& sc_dt::sc_signed_bitref::operator|= ( bool )

◆ operator~()

bool sc_dt::sc_signed_bitref_r::operator~ ( ) const

inherited

◆ print()

void sc_dt::sc_signed_bitref_r::print ( ::std::ostream & os = ::std::cout ) const

inlineinherited

Definition at line 817 of file sc_signed.h.

◆ scan()

void sc_dt::sc_signed_bitref::scan ( ::std::istream & is = ::std::cin )

◆ to_bool()

bool sc_dt::sc_signed_bitref_r::to_bool ( ) const

inlineinherited

Definition at line 780 of file sc_signed.h.

◆ value()

bool sc_dt::sc_signed_bitref_r::value ( ) const

inlineinherited

Definition at line 777 of file sc_signed.h.

Friends And Related Function Documentation

◆ sc_core::sc_vpool< sc_signed_bitref >

friend class sc_core::sc_vpool< sc_signed_bitref >

friend

Definition at line 848 of file sc_signed.h.

◆ sc_signed

friend class sc_signed

friend

Definition at line 847 of file sc_signed.h.

Member Data Documentation

◆ m_index

int sc_dt::sc_signed_bitref_r::m_index

protectedinherited

Definition at line 822 of file sc_signed.h.

◆ m_obj_p

sc_signed* sc_dt::sc_signed_bitref_r::m_obj_p

protectedinherited

Definition at line 823 of file sc_signed.h.

◆ m_pool

sc_core::sc_vpool<sc_signed_bitref> sc_dt::sc_signed_bitref::m_pool

staticprotected

Definition at line 889 of file sc_signed.h.

The documentation for this class was generated from the following file:

sysc/datatypes/int/sc_signed.h
