sc_dt::sc_unsigned_subref Class Reference

Proxy class for sc_unsigned part selection (r-value and l-value). More...

#include <sysc/datatypes/int/sc_unsigned.h>

Inheritance diagram for sc_dt::sc_unsigned_subref:
Inheritance graph
[legend]

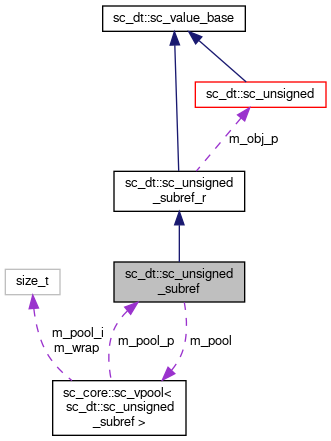

Collaboration diagram for sc_dt::sc_unsigned_subref:
Collaboration graph
[legend]

Public Member Functions

 sc_unsigned_subref (const sc_unsigned_subref &a)

const sc_unsigned_subref & operator= (const sc_unsigned_subref_r &a)

const sc_unsigned_subref & operator= (const sc_unsigned_subref &a)

const sc_unsigned_subref & operator= (const sc_unsigned &a)

template<class T >
const sc_unsigned_subref & operator= (const sc_generic_base< T > &a)

const sc_unsigned_subref & operator= (const sc_signed_subref_r &a)

const sc_unsigned_subref & operator= (const sc_signed &a)

const sc_unsigned_subref & operator= (const char *a)

const sc_unsigned_subref & operator= (unsigned long a)

const sc_unsigned_subref & operator= (long a)

const sc_unsigned_subref & operator= (unsigned int a)

const sc_unsigned_subref & operator= (int a)

const sc_unsigned_subref & operator= (uint64 a)

const sc_unsigned_subref & operator= (int64 a)

const sc_unsigned_subref & operator= (double a)

const sc_unsigned_subref & operator= (const sc_int_base &a)

const sc_unsigned_subref & operator= (const sc_uint_base &a)

virtual void concat_set (int64 src, int low_i)

virtual void concat_set (const sc_signed &src, int low_i)

virtual void concat_set (const sc_unsigned &src, int low_i)

virtual void concat_set (uint64 src, int low_i)

void scan (::std::istream &is=::std::cin)

int length () const

 operator sc_unsigned () const

int to_int () const

unsigned int to_uint () const

long to_long () const

unsigned long to_ulong () const

int64 to_int64 () const

uint64 to_uint64 () const

double to_double () const

const std::string to_string (sc_numrep numrep=SC_DEC) const

const std::string to_string (sc_numrep numrep, bool w_prefix) const

virtual int concat_length (bool *xz_present_p) const

virtual uint64 concat_get_uint64 () const

virtual bool concat_get_ctrl (sc_digit *dst_p, int low_i) const

virtual bool concat_get_data (sc_digit *dst_p, int low_i) const

bool and_reduce () const

bool nand_reduce () const

bool or_reduce () const

bool nor_reduce () const

bool xor_reduce () const

bool xnor_reduce () const

void print (::std::ostream &os=::std::cout) const


Protected Member Functions

 sc_unsigned_subref ()

void initialize (const sc_unsigned *obj_p, int left_, int right_)


Protected Attributes

int m_left

sc_unsigned * m_obj_p

int m_right


Static Protected Attributes

static sc_core::sc_vpool< sc_unsigned_subref > m_pool


Friends

class sc_unsigned

class sc_core::sc_vpool< sc_unsigned_subref >


Detailed Description

Proxy class for sc_unsigned part selection (r-value and l-value).

Definition at line 925 of file sc_unsigned.h.

Constructor & Destructor Documentation

◆ sc_unsigned_subref() [1/2]

sc_dt::sc_unsigned_subref::sc_unsigned_subref ( )
inlineprotected

Definition at line 935 of file sc_unsigned.h.

◆ sc_unsigned_subref() [2/2]

sc_dt::sc_unsigned_subref::sc_unsigned_subref ( const sc_unsigned_subref &  a)
inline

Definition at line 942 of file sc_unsigned.h.

Member Function Documentation

◆ and_reduce()

bool sc_dt::sc_unsigned_subref_r::and_reduce ( ) const
inlineinherited

Definition at line 2079 of file sc_unsigned.h.

◆ concat_get_ctrl()

virtual bool sc_dt::sc_unsigned_subref_r::concat_get_ctrl ( sc_digit *  dst_p,
int  low_i
) const
virtualinherited

Reimplemented from sc_dt::sc_value_base.

◆ concat_get_data()

virtual bool sc_dt::sc_unsigned_subref_r::concat_get_data ( sc_digit *  dst_p,
int  low_i
) const
virtualinherited

Reimplemented from sc_dt::sc_value_base.

◆ concat_get_uint64()

virtual uint64 sc_dt::sc_unsigned_subref_r::concat_get_uint64 ( ) const
virtualinherited

Reimplemented from sc_dt::sc_value_base.

◆ concat_length()

virtual int sc_dt::sc_unsigned_subref_r::concat_length ( bool *  xz_present_p) const
inlinevirtualinherited

Reimplemented from sc_dt::sc_value_base.

Definition at line 877 of file sc_unsigned.h.

◆ concat_set() [1/4]

virtual void sc_dt::sc_unsigned_subref::concat_set ( int64  src,
int  low_i
)
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [2/4]

virtual void sc_dt::sc_unsigned_subref::concat_set ( const sc_signed &  src,
int  low_i
)
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [3/4]

virtual void sc_dt::sc_unsigned_subref::concat_set ( const sc_unsigned &  src,
int  low_i
)
virtual

Reimplemented from sc_dt::sc_value_base.

◆ concat_set() [4/4]

virtual void sc_dt::sc_unsigned_subref::concat_set ( uint64  src,
int  low_i
)
virtual

Reimplemented from sc_dt::sc_value_base.

◆ initialize()

void sc_dt::sc_unsigned_subref_r::initialize ( const sc_unsigned *  obj_p,
int  left_,
int  right_
)
inlineprotectedinherited

Definition at line 824 of file sc_unsigned.h.

◆ length()

int sc_dt::sc_unsigned_subref_r::length ( ) const
inlineinherited

Definition at line 849 of file sc_unsigned.h.

◆ nand_reduce()

bool sc_dt::sc_unsigned_subref_r::nand_reduce ( ) const
inlineinherited

Definition at line 2087 of file sc_unsigned.h.

◆ nor_reduce()

bool sc_dt::sc_unsigned_subref_r::nor_reduce ( ) const
inlineinherited

Definition at line 2100 of file sc_unsigned.h.

◆ operator sc_unsigned()

sc_dt::sc_unsigned_subref_r::operator sc_unsigned ( ) const
inherited

◆ operator=() [1/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_unsigned_subref_r &  a)

◆ operator=() [2/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_unsigned_subref &  a)

◆ operator=() [3/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_unsigned &  a)

◆ operator=() [4/16]

template<class T >
const sc_unsigned_subref & sc_dt::sc_unsigned_subref::operator= ( const sc_generic_base< T > &  a)
inline

Definition at line 2054 of file sc_unsigned.h.

◆ operator=() [5/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_signed_subref_r &  a)

◆ operator=() [6/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_signed &  a)

◆ operator=() [7/16]

const sc_unsigned_subref & sc_dt::sc_unsigned_subref::operator= ( const char *  a)
inline

Definition at line 2140 of file sc_unsigned.h.

◆ operator=() [8/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( unsigned long  a)

◆ operator=() [9/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( long  a)

◆ operator=() [10/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( unsigned int  a)
inline

Definition at line 961 of file sc_unsigned.h.

◆ operator=() [11/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( int  a)
inline

Definition at line 964 of file sc_unsigned.h.

◆ operator=() [12/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( uint64  a)

◆ operator=() [13/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( int64  a)

◆ operator=() [14/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( double  a)

◆ operator=() [15/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_int_base &  a)

◆ operator=() [16/16]

const sc_unsigned_subref& sc_dt::sc_unsigned_subref::operator= ( const sc_uint_base &  a)

◆ or_reduce()

bool sc_dt::sc_unsigned_subref_r::or_reduce ( ) const
inlineinherited

Definition at line 2092 of file sc_unsigned.h.

◆ print()

void sc_dt::sc_unsigned_subref_r::print ( ::std::ostream &  os = ::std::cout) const
inlineinherited

Definition at line 897 of file sc_unsigned.h.

◆ scan()

void sc_dt::sc_unsigned_subref::scan ( ::std::istream &  is = ::std::cin)

◆ to_double()

double sc_dt::sc_unsigned_subref_r::to_double ( ) const
inherited

◆ to_int()

int sc_dt::sc_unsigned_subref_r::to_int ( ) const
inherited

◆ to_int64()

int64 sc_dt::sc_unsigned_subref_r::to_int64 ( ) const
inherited

◆ to_long()

long sc_dt::sc_unsigned_subref_r::to_long ( ) const
inherited

◆ to_string() [1/2]

const std::string sc_dt::sc_unsigned_subref_r::to_string ( sc_numrep  numrep = SC_DEC) const
inherited

◆ to_string() [2/2]

const std::string sc_dt::sc_unsigned_subref_r::to_string ( sc_numrep  numrep,
bool  w_prefix
) const
inherited

◆ to_uint()

unsigned int sc_dt::sc_unsigned_subref_r::to_uint ( ) const
inherited

◆ to_uint64()

uint64 sc_dt::sc_unsigned_subref_r::to_uint64 ( ) const
inherited

◆ to_ulong()

unsigned long sc_dt::sc_unsigned_subref_r::to_ulong ( ) const
inherited

◆ xnor_reduce()

bool sc_dt::sc_unsigned_subref_r::xnor_reduce ( ) const
inlineinherited

Definition at line 2115 of file sc_unsigned.h.

◆ xor_reduce()

bool sc_dt::sc_unsigned_subref_r::xor_reduce ( ) const
inlineinherited

Definition at line 2105 of file sc_unsigned.h.

Friends And Related Function Documentation

◆ sc_core::sc_vpool< sc_unsigned_subref >

friend class sc_core::sc_vpool< sc_unsigned_subref >
friend

Definition at line 929 of file sc_unsigned.h.

◆ sc_unsigned

friend class sc_unsigned
friend

Definition at line 928 of file sc_unsigned.h.

Member Data Documentation

◆ m_left

int sc_dt::sc_unsigned_subref_r::m_left
protectedinherited

Definition at line 902 of file sc_unsigned.h.

◆ m_obj_p

sc_unsigned* sc_dt::sc_unsigned_subref_r::m_obj_p
protectedinherited

Definition at line 903 of file sc_unsigned.h.

◆ m_pool

sc_core::sc_vpool<sc_unsigned_subref> sc_dt::sc_unsigned_subref::m_pool
staticprotected

Definition at line 985 of file sc_unsigned.h.

◆ m_right

int sc_dt::sc_unsigned_subref_r::m_right
protectedinherited

Definition at line 904 of file sc_unsigned.h.
