tlm::tlm_blocking_peek_if< T > Class Template Reference

#include <tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_core_ifs.h>

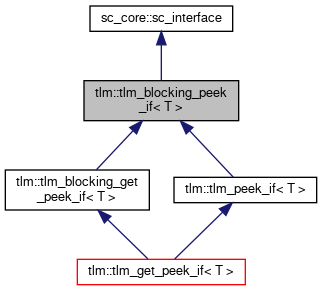

Inheritance diagram for tlm::tlm_blocking_peek_if< T >:

Collaboration diagram for tlm::tlm_blocking_peek_if< T >:

Public Member Functions
virtual T	peek (tlm_tag< T > *t=0) const =0
virtual void	peek (T &t) const
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const

Detailed Description

template<typename T>
class tlm::tlm_blocking_peek_if< T >

Definition at line 104 of file tlm_core_ifs.h.

Member Function Documentation

peek() [1/2]

template<typename T>

virtual T tlm::tlm_blocking_peek_if< T >::peek ( tlm_tag< T > *  t = 0 ) const

pure virtual

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

peek() [2/2]

template<typename T>

virtual void tlm::tlm_blocking_peek_if< T >::peek ( T &  t ) const

inlinevirtual

Definition at line 108 of file tlm_core_ifs.h.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_core_ifs.h
