tlm::tlm_nonblocking_master_if< REQ, RSP > Class Template Reference

#include <tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_master_slave_ifs.h>

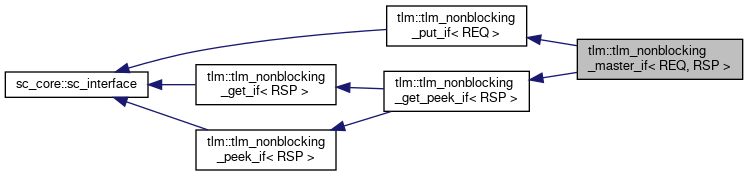

Inheritance diagram for tlm::tlm_nonblocking_master_if< REQ, RSP >:

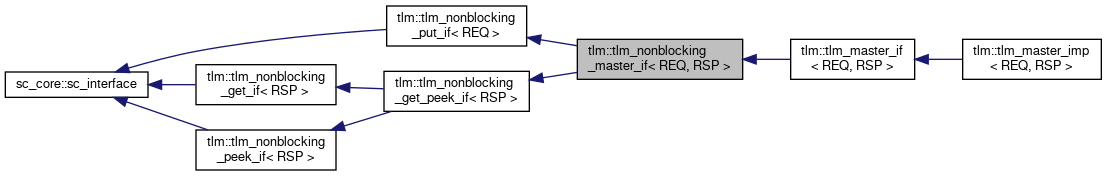

Collaboration diagram for tlm::tlm_nonblocking_master_if< REQ, RSP >:

Public Member Functions
virtual bool	nb_put (const REQ &t)=0
virtual bool	nb_can_put (tlm_tag< REQ > *t=0) const=0
virtual const sc_core::sc_event &	ok_to_put (tlm_tag< REQ > *t=0) const=0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual bool	nb_get (RSP &t)=0
virtual bool	nb_can_get (tlm_tag< RSP > *t=0) const=0
virtual const sc_core::sc_event &	ok_to_get (tlm_tag< RSP > *t=0) const=0
virtual bool	nb_peek (RSP &t) const=0
virtual bool	nb_can_peek (tlm_tag< RSP > *t=0) const=0
virtual const sc_core::sc_event &	ok_to_peek (tlm_tag< RSP > *t=0) const=0

Detailed Description

template<typename REQ, typename RSP>
class tlm::tlm_nonblocking_master_if< REQ, RSP >

Definition at line 46 of file tlm_master_slave_ifs.h.

Member Function Documentation

nb_can_get()

virtual bool tlm::tlm_nonblocking_get_if< RSP >::nb_can_get ( tlm_tag< RSP > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

nb_can_peek()

virtual bool tlm::tlm_nonblocking_peek_if< RSP >::nb_can_peek ( tlm_tag< RSP > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

nb_can_put()

virtual bool tlm::tlm_nonblocking_put_if< REQ >::nb_can_put ( tlm_tag< REQ > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

nb_get()

virtual bool tlm::tlm_nonblocking_get_if< RSP >::nb_get ( RSP &  t )

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

nb_peek()

virtual bool tlm::tlm_nonblocking_peek_if< RSP >::nb_peek ( RSP &  t ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

nb_put()

virtual bool tlm::tlm_nonblocking_put_if< REQ >::nb_put ( const REQ &  t )

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

ok_to_get()

virtual const sc_core::sc_event& tlm::tlm_nonblocking_get_if< RSP >::ok_to_get ( tlm_tag< RSP > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

ok_to_peek()

virtual const sc_core::sc_event& tlm::tlm_nonblocking_peek_if< RSP >::ok_to_peek ( tlm_tag< RSP > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

ok_to_put()

virtual const sc_core::sc_event& tlm::tlm_nonblocking_put_if< REQ >::ok_to_put ( tlm_tag< REQ > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_master_slave_ifs.h
