sc_core::sc_fifo_out_if< T > Class Template Reference

#include <sysc/communication/sc_fifo_ifs.h>

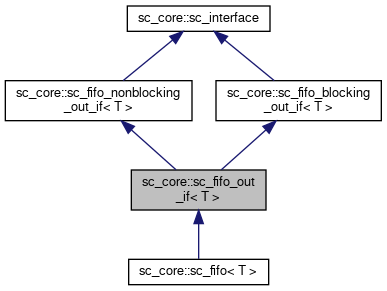

Inheritance diagram for sc_core::sc_fifo_out_if< T >:

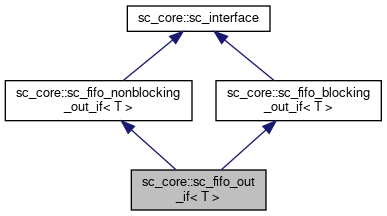

Collaboration diagram for sc_core::sc_fifo_out_if< T >:

Public Member Functions
virtual int	num_free () const =0
virtual bool	nb_write (const T &)=0
virtual const sc_event &	data_read_event () const =0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual void	write (const T &)=0

Protected Member Functions
	sc_fifo_out_if ()

Detailed Description

template<class T>
class sc_core::sc_fifo_out_if< T >

Definition at line 151 of file sc_fifo_ifs.h.

Constructor & Destructor Documentation

sc_fifo_out_if()

template<class T >

sc_core::sc_fifo_out_if< T >::sc_fifo_out_if ( )

inlineprotected

Definition at line 164 of file sc_fifo_ifs.h.

Member Function Documentation

data_read_event()

template<class T >

virtual const sc_event& sc_core::sc_fifo_nonblocking_out_if< T >::data_read_event ( ) const

pure virtualinherited

Implemented in sc_core::sc_fifo< T >.

default_event()

virtual const sc_event& sc_core::sc_interface::default_event ( ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_event_queue.

nb_write()

template<class T >

virtual bool sc_core::sc_fifo_nonblocking_out_if< T >::nb_write ( const T &  )

pure virtualinherited

Implemented in sc_core::sc_fifo< T >.

num_free()

template<class T >

virtual int sc_core::sc_fifo_out_if< T >::num_free ( ) const

pure virtual

Implemented in sc_core::sc_fifo< T >.

register_port()

virtual void sc_core::sc_interface::register_port ( sc_port_base &  port_, const char *  if_typename_  )

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_fifo< T >.

write()

template<class T >

virtual void sc_core::sc_fifo_blocking_out_if< T >::write ( const T &  )

pure virtualinherited

Implemented in sc_core::sc_fifo< T >.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_fifo_ifs.h
