sc_core::sc_semaphore_if Class Reference

The sc_semaphore_if interface class. More...

#include <sysc/communication/sc_semaphore_if.h>

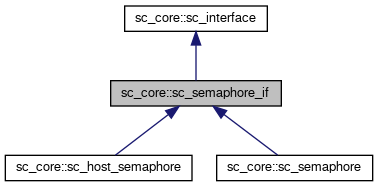

Inheritance diagram for sc_core::sc_semaphore_if:

Collaboration diagram for sc_core::sc_semaphore_if:

Public Member Functions
virtual int	wait ()=0
virtual int	trywait ()=0
virtual int	post ()=0
virtual int	get_value () const =0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const

Protected Member Functions
	sc_semaphore_if ()

Detailed Description

The sc_semaphore_if interface class.

Definition at line 46 of file sc_semaphore_if.h.

Constructor & Destructor Documentation

sc_semaphore_if()

sc_core::sc_semaphore_if::sc_semaphore_if ( )

inlineprotected

Definition at line 69 of file sc_semaphore_if.h.

Member Function Documentation

default_event()

virtual const sc_event& sc_core::sc_interface::default_event ( ) const

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, and sc_core::sc_event_queue.

get_value()

virtual int sc_core::sc_semaphore_if::get_value ( ) const

pure virtual

Implemented in sc_core::sc_host_semaphore, and sc_core::sc_semaphore.

post()

virtual int sc_core::sc_semaphore_if::post ( )

pure virtual

Implemented in sc_core::sc_host_semaphore, and sc_core::sc_semaphore.

register_port()

virtual void sc_core::sc_interface::register_port ( sc_port_base &  port_, const char *  if_typename_  )

virtualinherited

Reimplemented in sc_core::sc_signal_t< T, POL >, sc_core::sc_signal_t< bool, POL >, sc_core::sc_signal_t< sc_dt::sc_logic, POL >, sc_core::sc_signal_rv< W >, sc_core::sc_clock, sc_core::sc_signal_resolved, and sc_core::sc_fifo< T >.

trywait()

virtual int sc_core::sc_semaphore_if::trywait ( )

pure virtual

Implemented in sc_core::sc_host_semaphore, and sc_core::sc_semaphore.

wait()

virtual int sc_core::sc_semaphore_if::wait ( )

pure virtual

Implemented in sc_core::sc_host_semaphore, and sc_core::sc_semaphore.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_semaphore_if.h
