tlm::tlm_fifo_get_if< T > Class Template Reference

#include <tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_fifo_ifs.h>

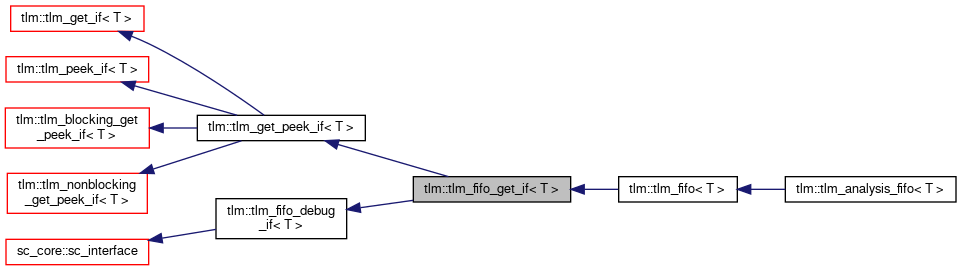

Inheritance diagram for tlm::tlm_fifo_get_if< T >:

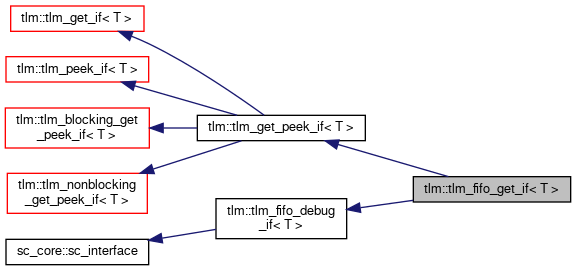

Collaboration diagram for tlm::tlm_fifo_get_if< T >:

Public Member Functions
virtual T	get (tlm_tag< T > *t=0)=0
virtual void	get (T &t)
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual bool	nb_get (T &t)=0
virtual bool	nb_can_get (tlm_tag< T > *t=0) const =0
virtual const sc_core::sc_event &	ok_to_get (tlm_tag< T > *t=0) const =0
virtual T	peek (tlm_tag< T > *t=0) const =0
virtual void	peek (T &t) const
virtual bool	nb_peek (T &t) const =0
virtual bool	nb_can_peek (tlm_tag< T > *t=0) const =0
virtual const sc_core::sc_event &	ok_to_peek (tlm_tag< T > *t=0) const =0
virtual int	used () const =0
virtual int	size () const =0
virtual void	debug () const =0
virtual bool	nb_peek (T &, int n) const =0
virtual bool	nb_poke (const T &, int n=0)=0

Detailed Description

template<typename T>
class tlm::tlm_fifo_get_if< T >

Definition at line 67 of file tlm_fifo_ifs.h.

Member Function Documentation

debug()

template<typename T >

virtual void tlm::tlm_fifo_debug_if< T >::debug ( ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >.

get() [1/2]

template<typename T>

virtual T tlm::tlm_blocking_get_if< T >::get ( tlm_tag< T > *  t = 0 )

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

get() [2/2]

template<typename T>

virtual void tlm::tlm_blocking_get_if< T >::get ( T &  t )

inlinevirtualinherited

Definition at line 56 of file tlm_core_ifs.h.

nb_can_get()

template<typename T>

virtual bool tlm::tlm_nonblocking_get_if< T >::nb_can_get ( tlm_tag< T > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

nb_can_peek()

template<typename T>

virtual bool tlm::tlm_nonblocking_peek_if< T >::nb_can_peek ( tlm_tag< T > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

nb_get()

template<typename T>

virtual bool tlm::tlm_nonblocking_get_if< T >::nb_get ( T &  t )

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

nb_peek() [1/2]

template<typename T >

virtual bool tlm::tlm_fifo_debug_if< T >::nb_peek ( T &  , int  n  ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >.

nb_peek() [2/2]

template<typename T>

virtual bool tlm::tlm_nonblocking_peek_if< T >::nb_peek ( T &  t ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

nb_poke()

template<typename T >

virtual bool tlm::tlm_fifo_debug_if< T >::nb_poke ( const T &  , int  n = 0  )

pure virtualinherited

Implemented in tlm::tlm_fifo< T >.

ok_to_get()

template<typename T>

virtual const sc_core::sc_event& tlm::tlm_nonblocking_get_if< T >::ok_to_get ( tlm_tag< T > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

ok_to_peek()

template<typename T>

virtual const sc_core::sc_event& tlm::tlm_nonblocking_peek_if< T >::ok_to_peek ( tlm_tag< T > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

peek() [1/2]

template<typename T>

virtual T tlm::tlm_blocking_peek_if< T >::peek ( tlm_tag< T > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >, tlm::tlm_put_get_imp< PUT_DATA, GET_DATA >, tlm::tlm_put_get_imp< REQ, RSP >, and tlm::tlm_put_get_imp< RSP, REQ >.

peek() [2/2]

template<typename T>

virtual void tlm::tlm_blocking_peek_if< T >::peek ( T &  t ) const

inlinevirtualinherited

Definition at line 108 of file tlm_core_ifs.h.

size()

template<typename T >

virtual int tlm::tlm_fifo_debug_if< T >::size ( ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >.

used()

template<typename T >

virtual int tlm::tlm_fifo_debug_if< T >::used ( ) const

pure virtualinherited

Implemented in tlm::tlm_fifo< T >.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_fifo_ifs.h
