tlm::tlm_blocking_master_if< REQ, RSP > Class Template Reference

#include <tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_master_slave_ifs.h>

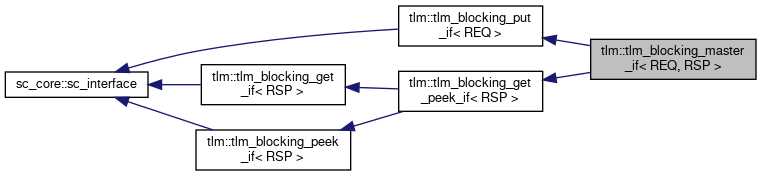

Inheritance diagram for tlm::tlm_blocking_master_if< REQ, RSP >:

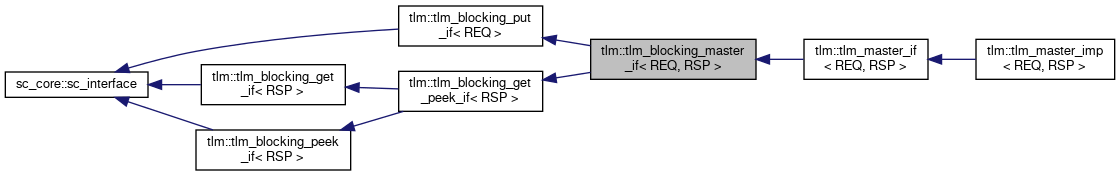

Collaboration diagram for tlm::tlm_blocking_master_if< REQ, RSP >:

Public Member Functions
virtual void	put (const REQ &t)=0
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual RSP	get (tlm_tag< RSP > *t=0)=0
virtual void	get (RSP &t)
virtual RSP	peek (tlm_tag< RSP > *t=0) const=0
virtual void	peek (RSP &t) const

Detailed Description

template<typename REQ, typename RSP>
class tlm::tlm_blocking_master_if< REQ, RSP >

Definition at line 34 of file tlm_master_slave_ifs.h.

Member Function Documentation

get() [1/2]

virtual RSP tlm::tlm_blocking_get_if< RSP >::get ( tlm_tag< RSP > *  t = 0 )

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

get() [2/2]

virtual void tlm::tlm_blocking_get_if< RSP >::get ( RSP &  t )

inlinevirtualinherited

Definition at line 56 of file tlm_core_ifs.h.

peek() [1/2]

virtual RSP tlm::tlm_blocking_peek_if< RSP >::peek ( tlm_tag< RSP > *  t = 0 ) const

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

peek() [2/2]

virtual void tlm::tlm_blocking_peek_if< RSP >::peek ( RSP &  t ) const

inlinevirtualinherited

Definition at line 108 of file tlm_core_ifs.h.

put()

virtual void tlm::tlm_blocking_put_if< REQ >::put ( const REQ &  t )

pure virtualinherited

Implemented in tlm::tlm_put_get_imp< REQ, RSP >.

---

The documentation for this class was generated from the following file:

• tlm_core/tlm_1/tlm_req_rsp/tlm_1_interfaces/tlm_master_slave_ifs.h
